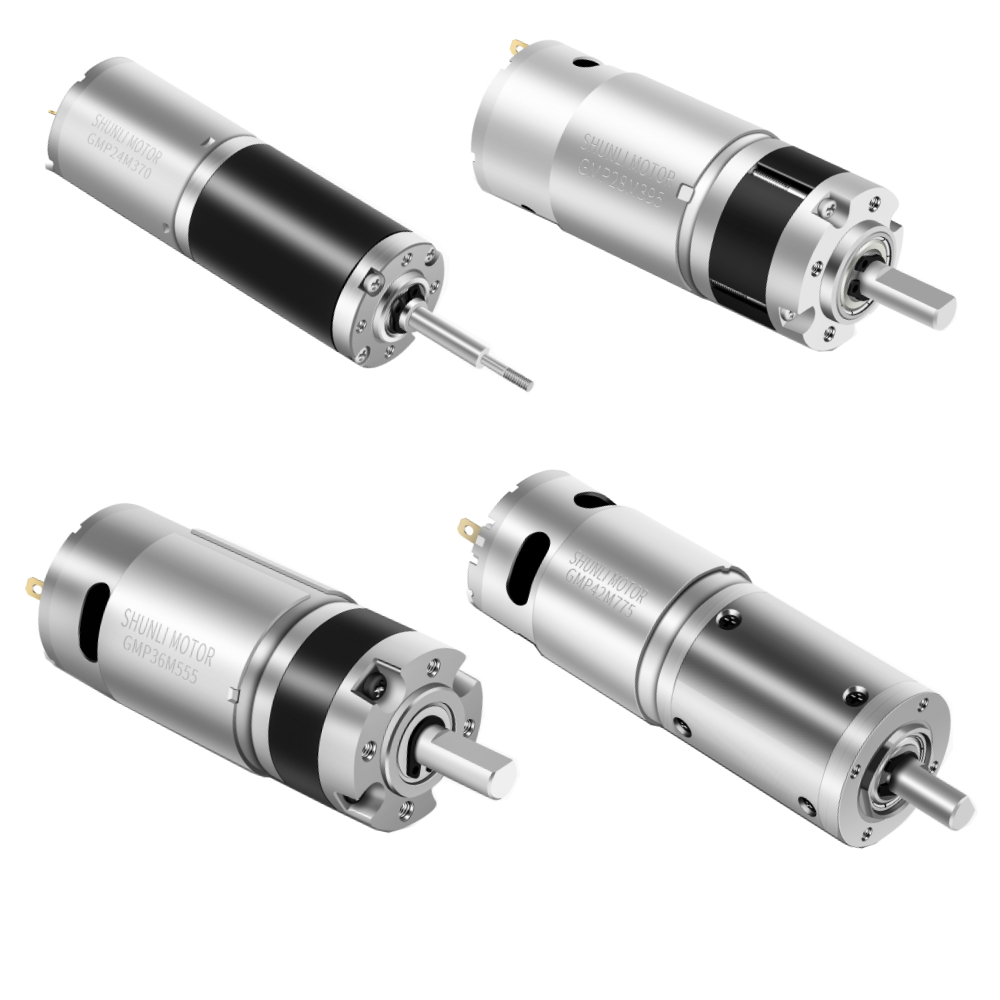

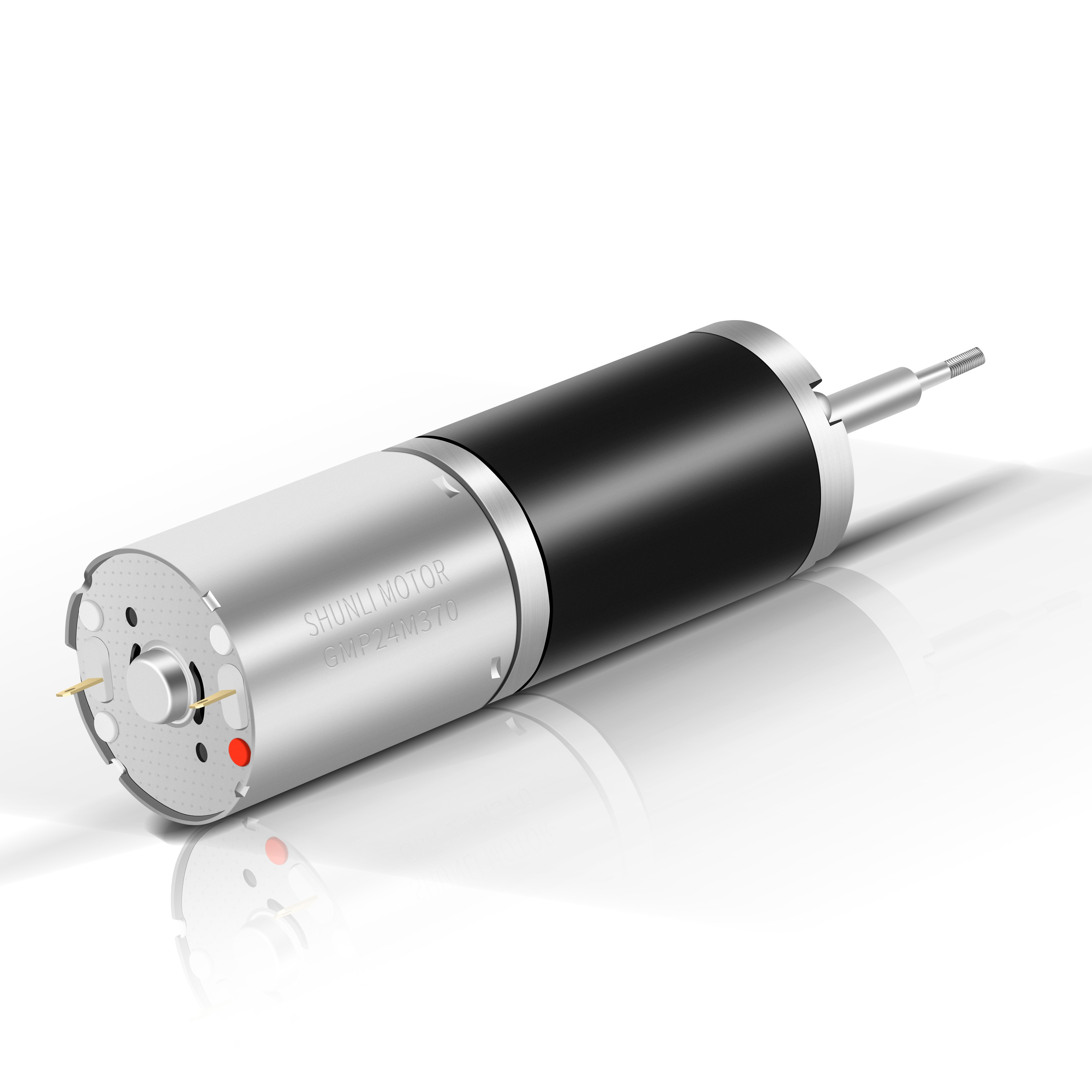

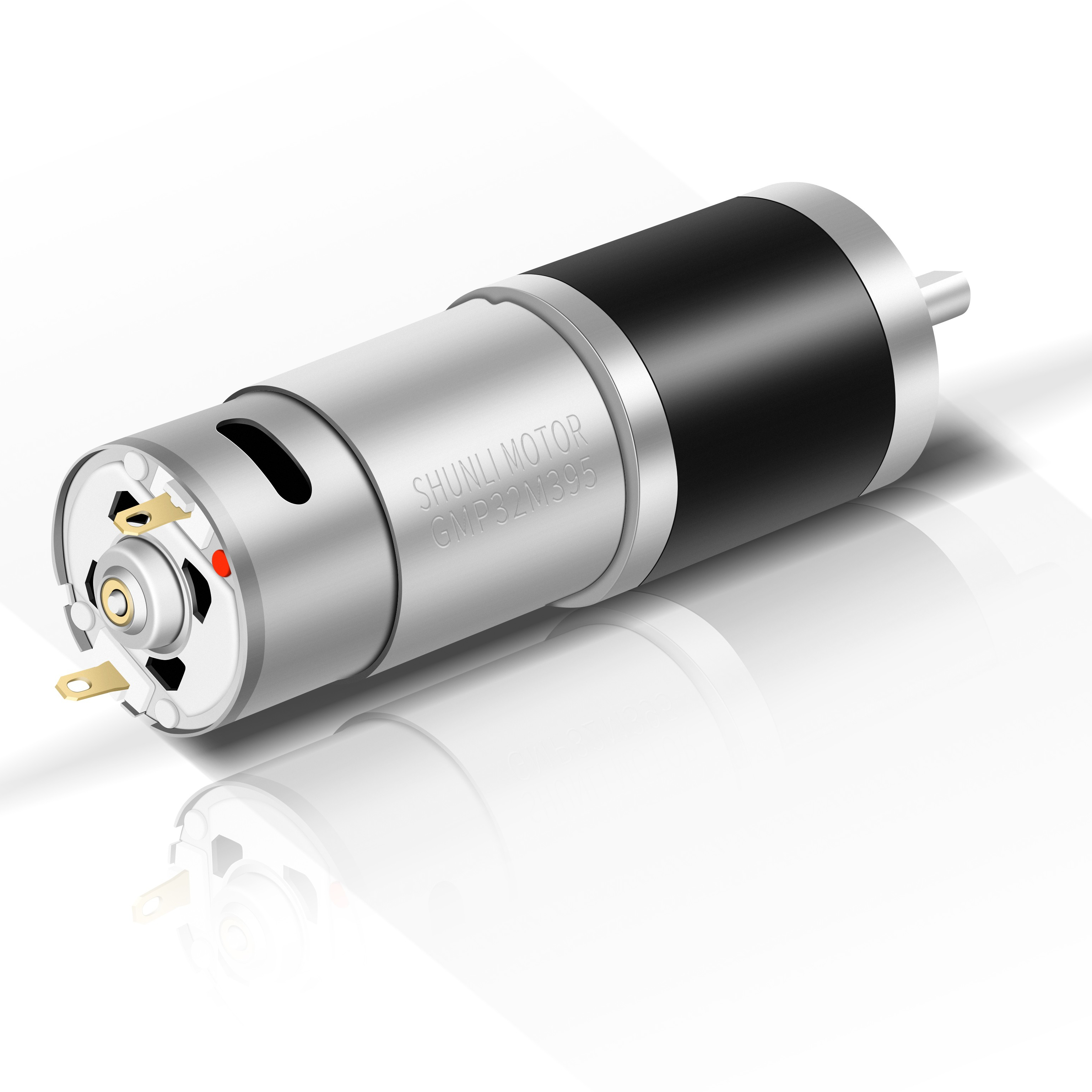

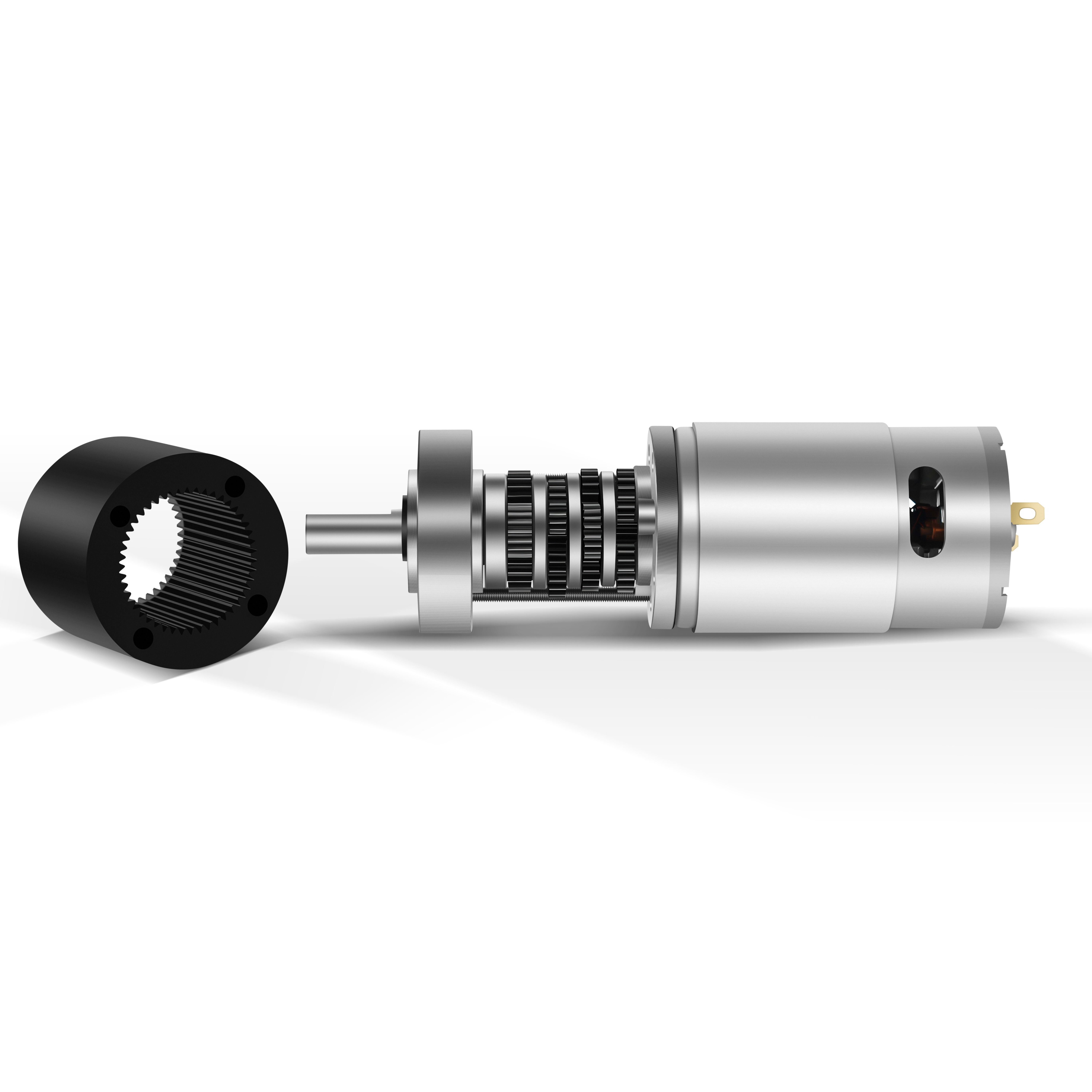

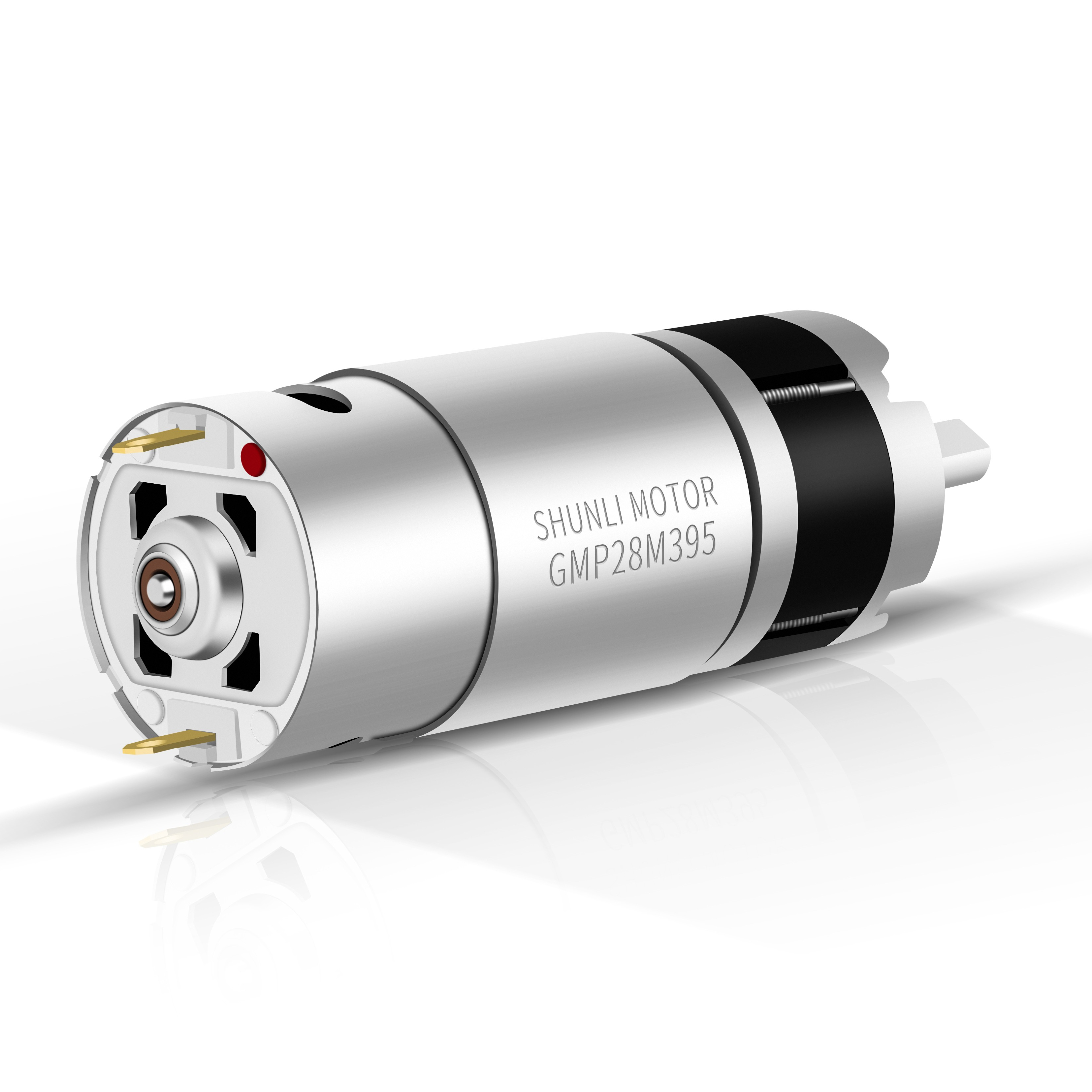

High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components

Product Description

Promotion
Promotion Banner
Product Description
Product Details

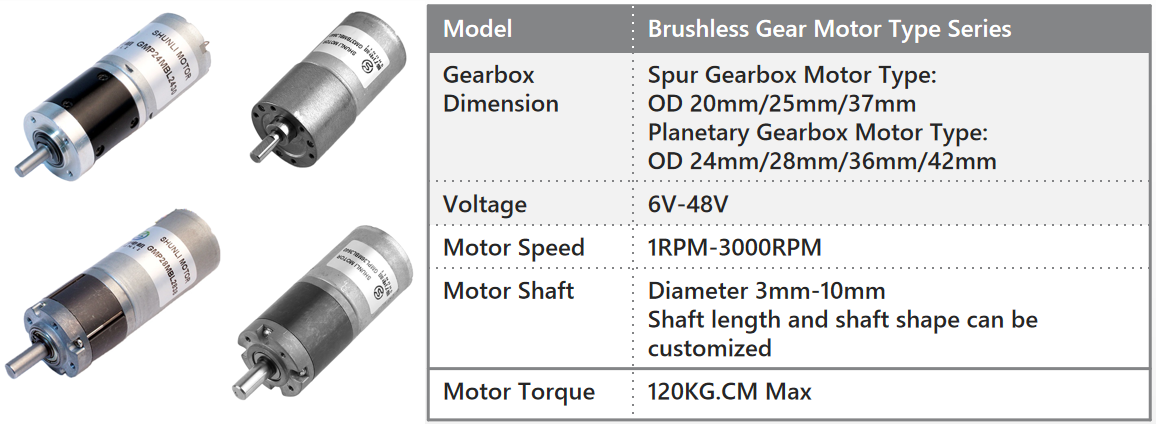

High Torque Brushless Dc Motor Product Details
The Price & technical specification of different motor types is different, kindly contact our engineer sales service if you're interested in it.
Specification
Gearbox Technical Data
Ratio 3.4K - 5184K
Max. Rated Torque 0.5~120Kgf.cm
Max. Gear Breaked Torque 180 Kgf.cm
Gearbox Efficiency 45%~95%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA N.m / Kgf.cm
GM25AMBL2430-217K 1 : 217 12 VDC 18 ≤ 120 15 ≤ 200 0.45 / 4.5 ≤ 950 0.21 / 2.1
GM37BMBL3657-113QK 1 : 113 24 VDC 58 ≤ 400 48.5 ≤ 1400 3.0 / 30 ≤ 7000 10 / 100
GMP36MBL3640-27K 1 : 27 24 VDC 185 ≤ 300 150 ≤ 750 0.45 / 4.5 ≤ 3000 2.25 / 22.5
GMP42MBL4260-325K 1 : 245 24 VDC 10 ≤ 300 8 ≤ 1200 6N.M / 60KG.CM ≤ 4800 20 / 200
Outline Drawings

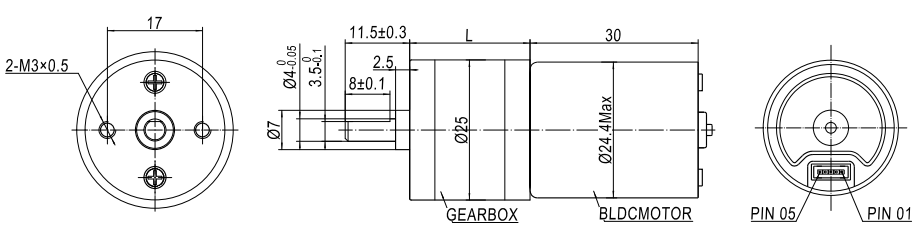

GM25 Motor Type GM25 Motor Dimensions Drawing

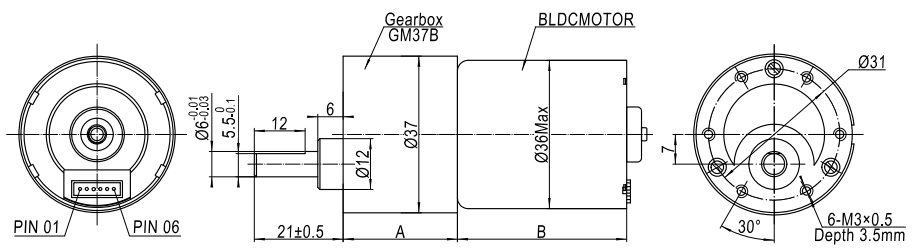

GM37 Motor Type GM37 Motor Dimensions Drawing

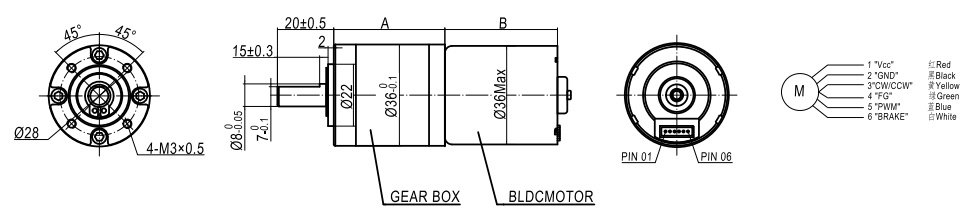

GMP36 Planetary Gear Motor Type GMP36 Planetary Gear Motor Dimensions Drawing

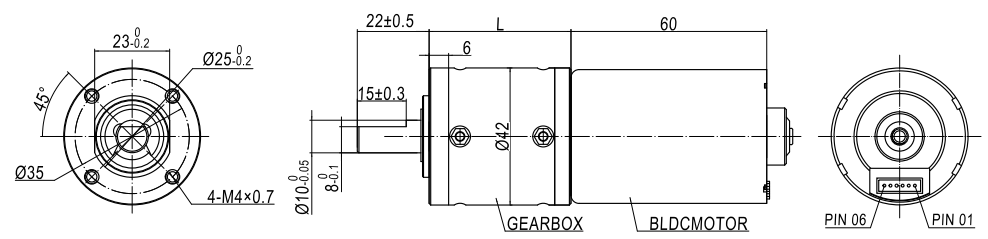

GMP42 Planetary Gear Motor Type GMP42 Planetary Gear Motor Dimensions Drawing
Certifications
Product Certifications
Customer Evaluation
Customer Feedback Review
Applications
Motor Industry Applications
About Our Factory & Services
Our Production Facility
Geared Motor Manufacturing Facility
Established in 2005, our factory is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. The products are exported to more than 50 countries and regions at home and abroad.
Quality Control Process
In order to confirm quality, from the moment we receive material to shipment, every step of the way is carefully checked. Quality is the basis of our development.

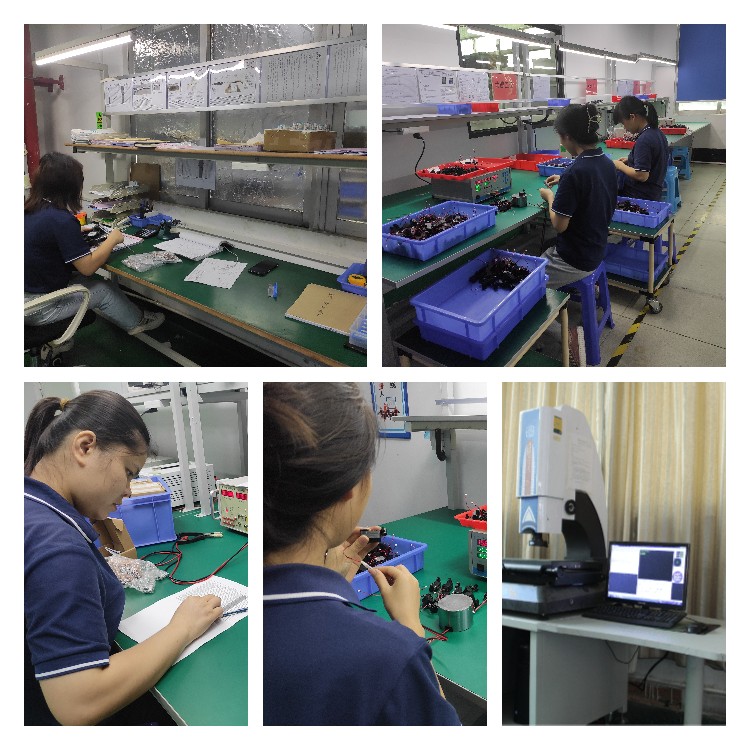

Quality Testing Control Equipment
Our Service Standards
Credibility Icon
We are a certified gold seller in possession of high credibility.
Delivery Icon
100% on-time delivery rate ensures your product arrives timely.
Sample Icon
Standard samples produced within 2 weeks. Customized samples produced within 3 weeks.
Support Icon
Timely reply and comprehensive technical service support. All messages replied to within 2 hours.
Frequently Asked Questions (FAQ)
Q1 Are you a trading company or a manufacturer?
We are a professional factory specializing in micro DC motors and DC gear motors for more than 14 years.
Q2 What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customers to pay online using Master Card, Visa, etc. Customers can also pay via PayPal, TT, and other methods.
Q3 If I can't find a suitable motor on your website, can you customize it for me?
Yes, we can customize a suitable motor according to our customers' specific application requirements.
Q4 Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other international certificates. If you require other specific certificates, we can apply for them for you.
Q5 How is your Quality Control managed?
We have professional checking staff on every production line process. After finishing the motor assembly, we use specialized quality machinery to test the motors, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Q6 What is the typical lead time for customized samples and mass production?
Standard samples are typically produced within 2 weeks, while customized samples are delivered within 3 weeks. Mass production timeline varies depending on specifications and quantities, generally taking around 3 to 4 weeks.
