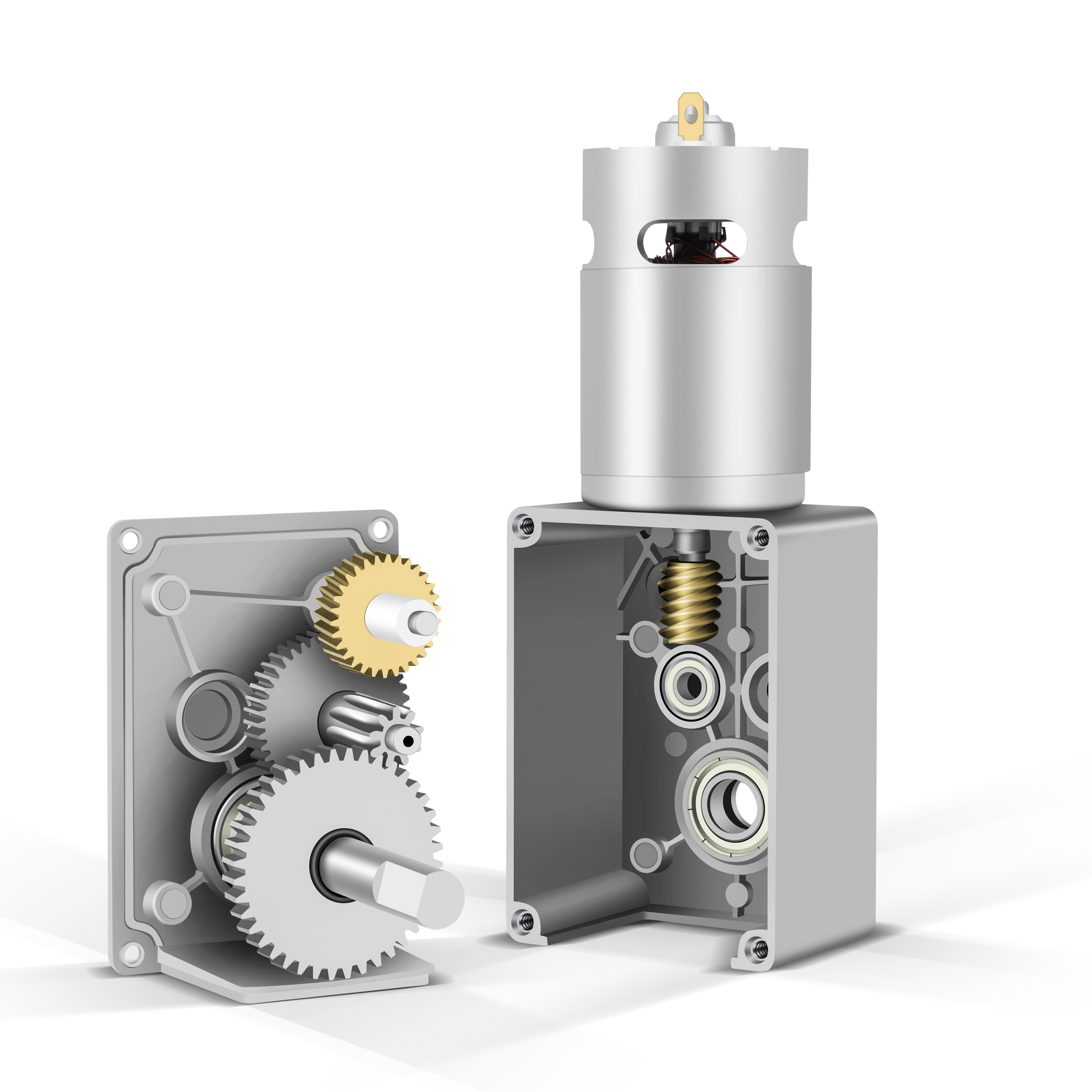

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen

Product Description

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For 3D Printing Pen

Promotion
Worm Gear Motor Promotion Banner 1
Worm Gear Motor Promotion Banner 2

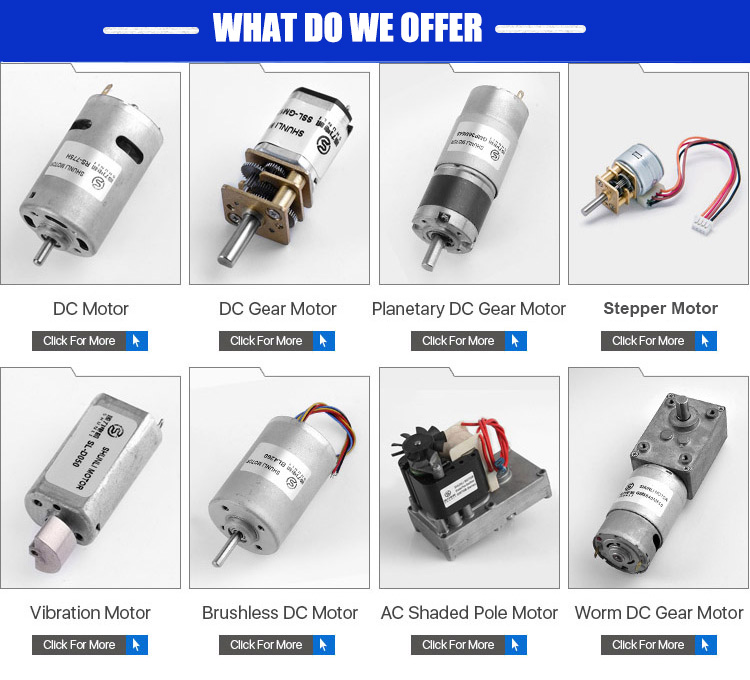

Worm Gear Motor Product Category Selection
Product Description
Product Details

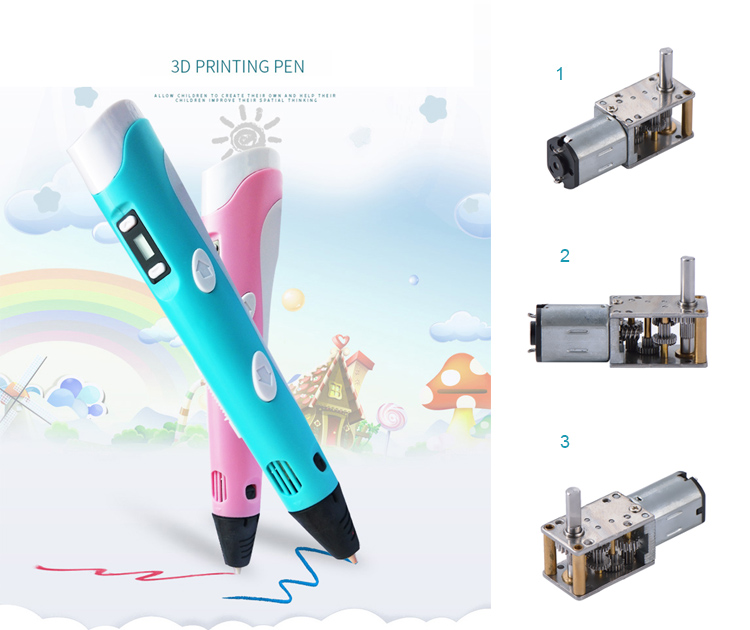

Worm Gear Motor Product Details Showcase
Specifications
Gearbox Technical Data
Ratio Max. Rated Torque Max. Gear Breaked Torque Gearbox Efficiency
41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K 300~800 gf.cm 1000~3000 gf.cm 12%~35%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA mN.m / gf.cm
GM1220EMN20-95K 1 : 95 4.5 VDC 145 ≤ 70 122 ≤ 200 8 / 80 ≤ 700 75 / 750
GM1220EMN30-1007K 1 : 1007 12 VDC 25 ≤ 90 22 ≤ 230 120 / 1200 ≤ 400 420 / 4200

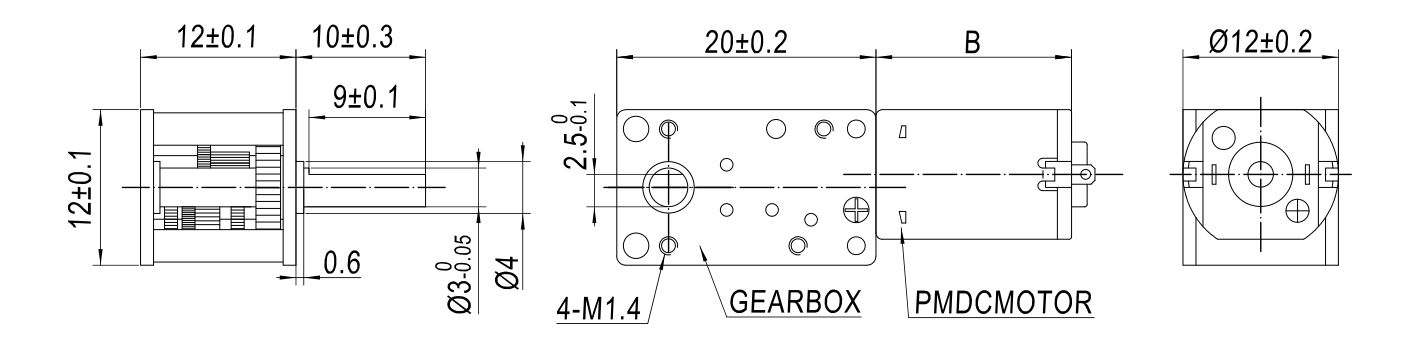

Gearmotor Dimensions and Drawings
PMDC Motor Technical Data
PMDC MOTOR Model Length "B" (mm) Rated Voltage (V) No-Load Rated Stall
Model Prefix Specification Code Speed Current Speed Current Torque Current Torque
- RPM mA RPM mA mN.m / gf.cm mA mN.m / gf.cm
SL-N20 04514000 15 4.5 VDC 14000 ≤ 40 12000 ≤ 130 0.25 / 2.5 ≤ 650 1.5 / 15
SL-N30 1225400 20 12 VDC 25400 ≤ 50 22600 ≤ 170 0.5 / 5 ≤ 380 4.2 / 42
Application

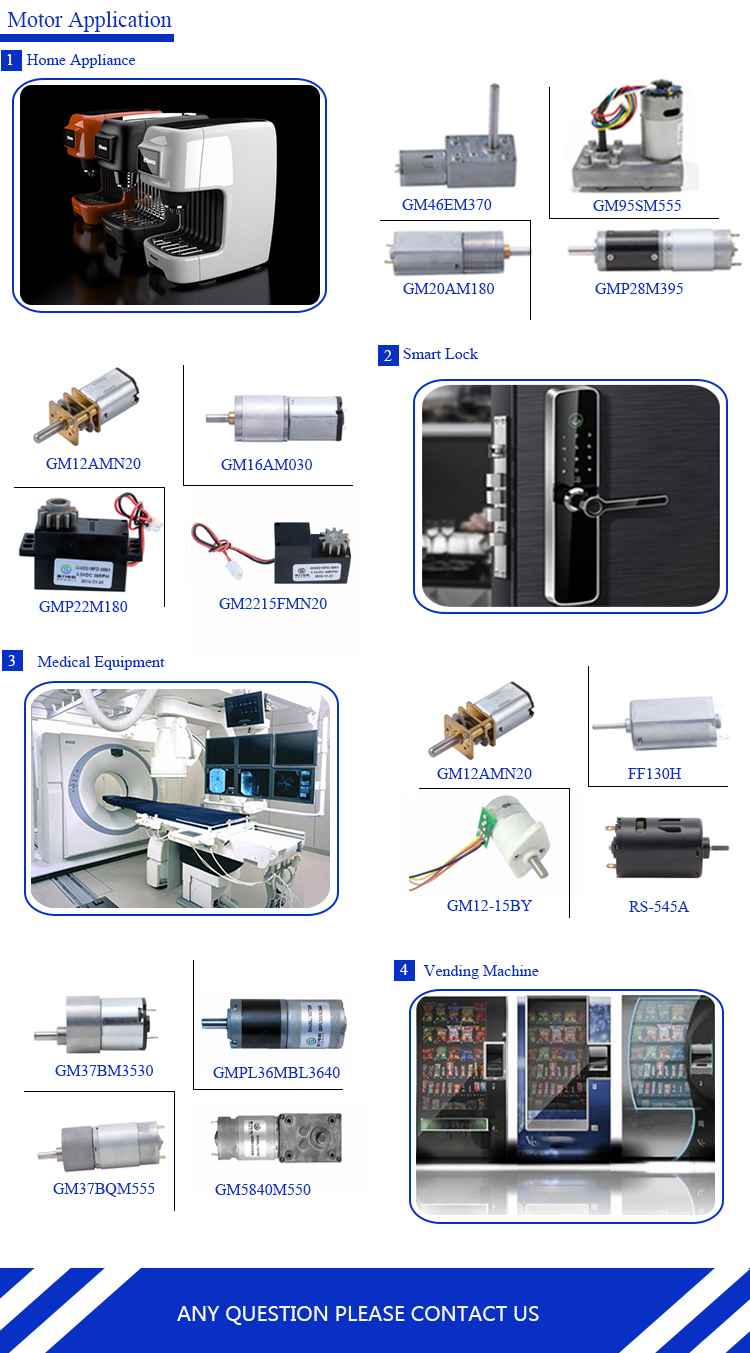

Worm Gear Motor Practical Applications Map
Customer Evaluation
Customer Feedback and Reviews Chart
Certification
System Quality Management Certificates
Compliant Testing Declarations
Company Profile

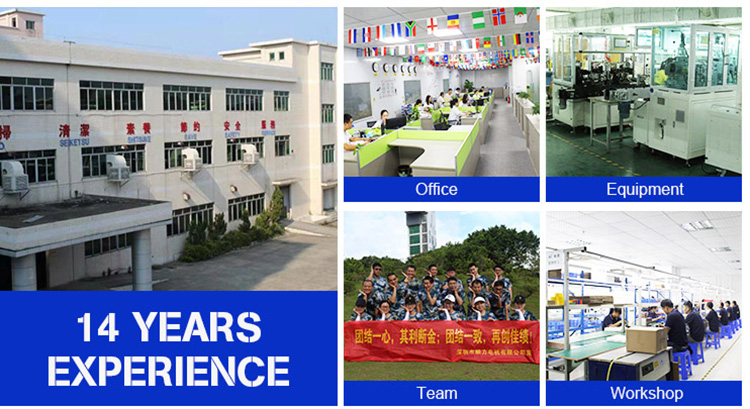

Production Factory Overview 1
Modern Manufacturing Workshop Facility
Established in 2005, this high-tech enterprise integrates the research, development, production, and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shaded pole geared motors, and special gearbox motors. The products are widely used in automobiles, communications equipment, smart homes, medical equipment, intelligent security, household appliances, commercial kitchen equipment, machinery, electronics, and other high-end transmission structures. These products are exported to more than 50 countries and regions worldwide.
Precision Assembly Production Line
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a factory. We have specialized in manufacturing micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for a new customer?
We can set up an Online Assurance Order for new customers, allowing online payments with Mastercard, Visa, etc. Customers can also pay via PayPal, T/T (Telegraphic Transfer), and other standard methods.
3. I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a motor to meet our customer's specific technical requirements and dimensional needs.
4. Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. If you require other specific certifications, we can apply for them based on your needs.
5. How is your Quality Control managed?

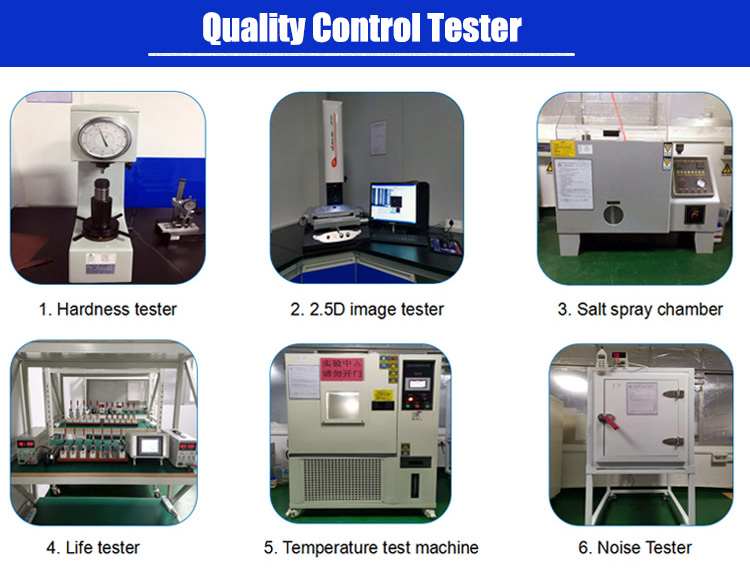

We have professional quality inspectors checking every stage of the production line. Once the assembly is complete, we perform comprehensive machine testing, including Hardness Testing, 2.5D Image Testing, Salt Spray Chamber testing, Life Testing, Temperature testing, and Noise testing.
6. What are the key applications for these 0.8nm worm gear motors?
These compact worm gear motors are ideal for 3D printing pens, smart home devices, automotive transmission structures, medical devices, intelligent security systems, and high-end electronics.
