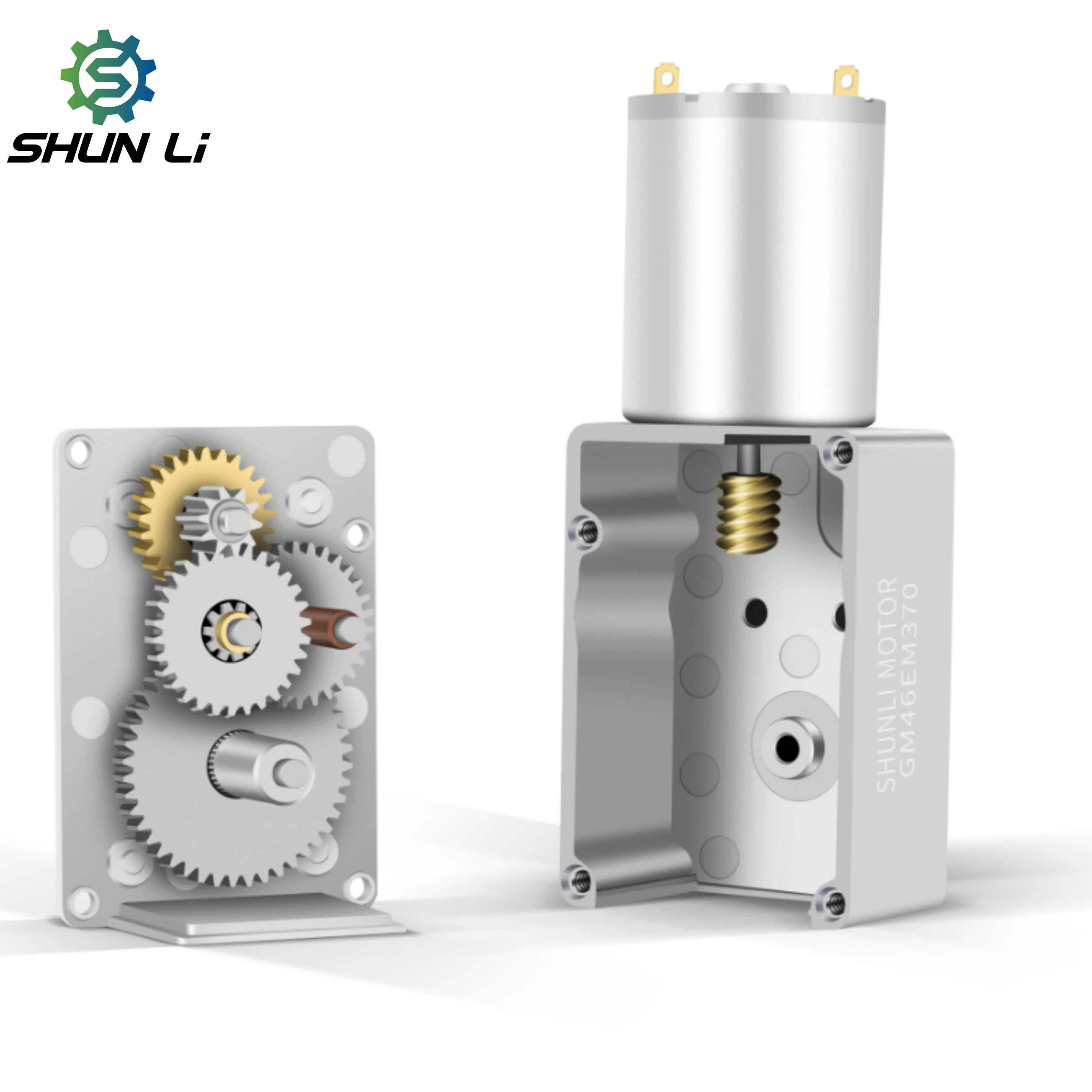

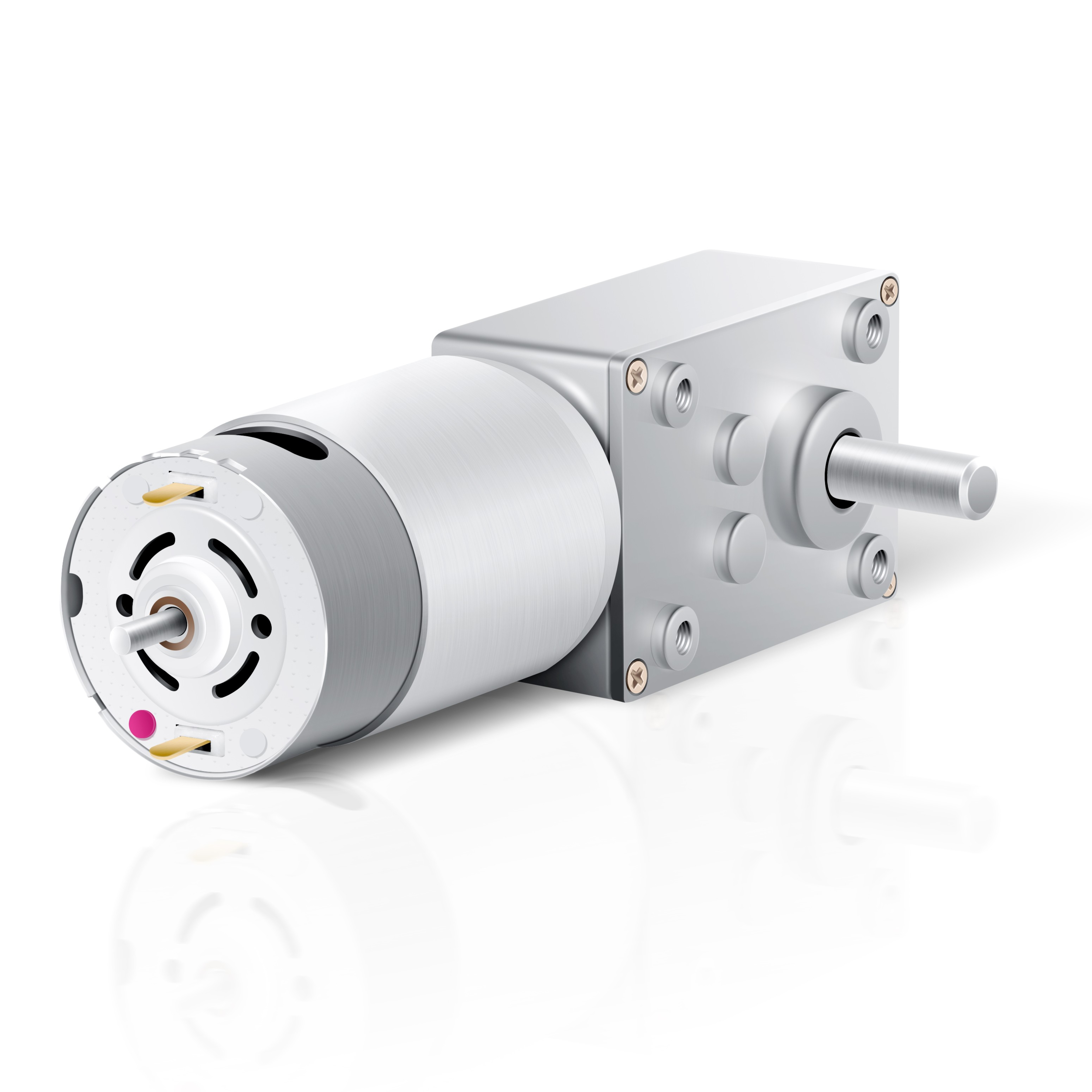

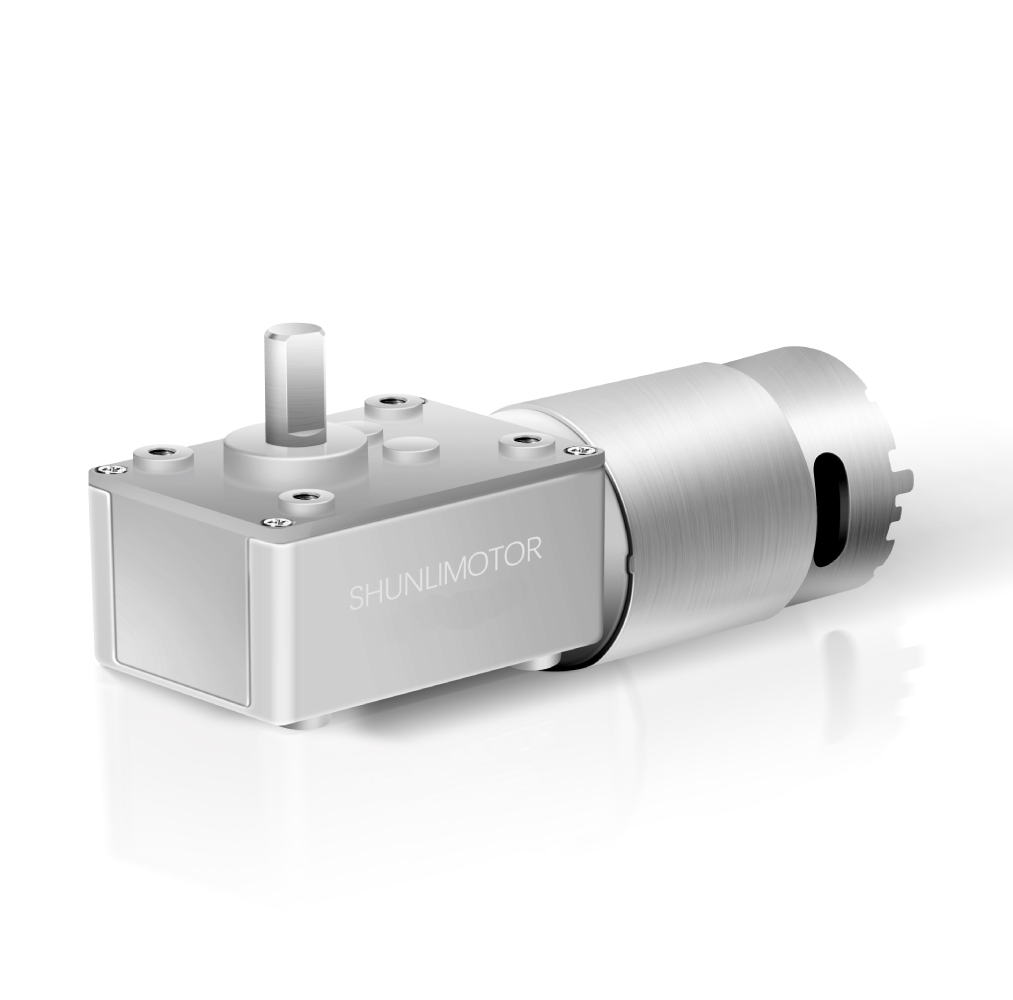

12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
1 / 4
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake

12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake

Send Inquiry

Product Description

Micro DC Gear Motor Presentation

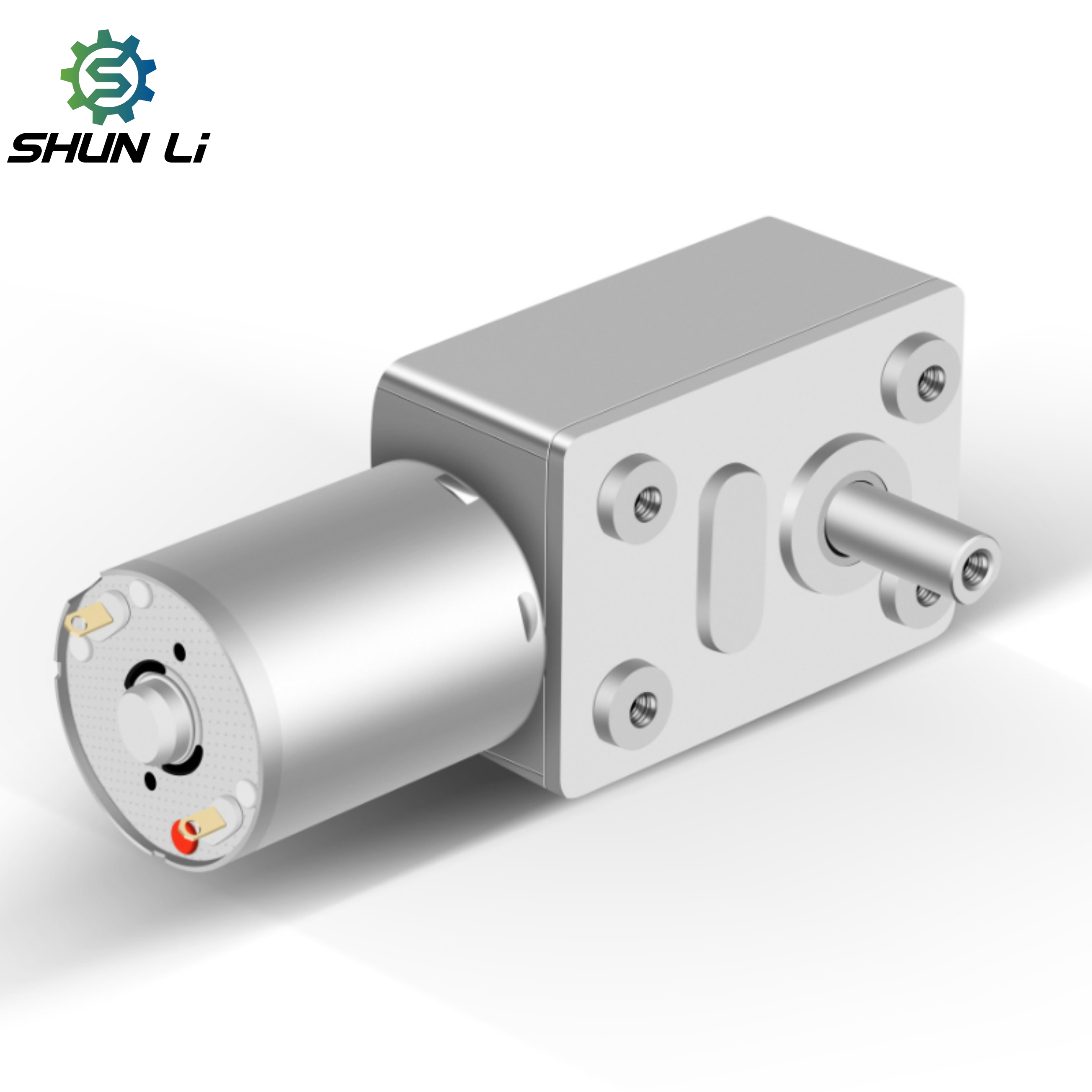

Product Technical Dimensions
Product Model GM46EM370
Gearbox Length 46±0.5MM
Speed 1.2RPM~190RPM
Voltage 24V
Torque 0.65N.m/0.12N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

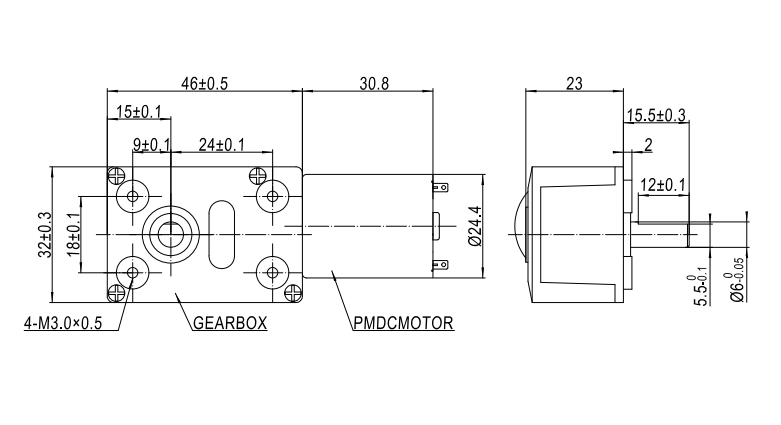

Motor Technical Drawing

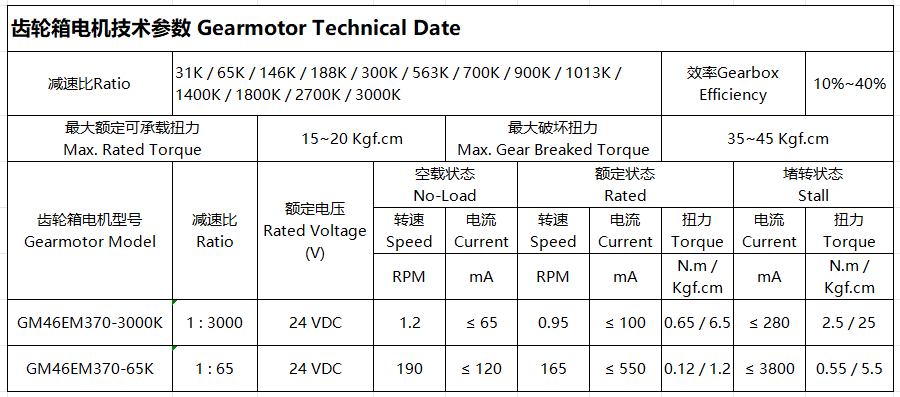

Motor Performance Curve Chart
Application Gallery 1
Application Gallery 2
Application Gallery 3
Application Gallery 4
Application Gallery 5
Application Gallery 6
Frequently Asked Questions
Q Are you a trading company or a manufacturer?
A
We are a factory. We specialize in micro DC motors and DC gear motors with more than 14 years of professional experience.
Q What is the payment term for a new customer?
A
We can draw up an Online Assurance Order for our new customers, supporting online payment methods such as Master Card, Visa, etc. Customers can also choose to pay via PayPal, TT, and other methods.
Q I can't find a suitable motor on your website, can you customize the motor for me?
A
Yes, we can customize a suitable motor including transmission dimensions and parameters according to our customer's specific requirements.
Q Do you have certificates for the motors?
A
Yes, we have CE, FCC, ISO, and other relevant certificates. If you have additional specific certificate requirements, we can apply for them to support your market needs.
Q How is your Quality Control?
A
We have professional inspectors on every step of the production process. After production is complete, we perform comprehensive performance tests using high-end quality inspection machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers.
Q Which specific parameters of the motor can be customized?
A
We support customization for a wide range of specifications, including transmission dimensions, gearbox length, working voltage, speed, torque, and other key motor performance parameters.
