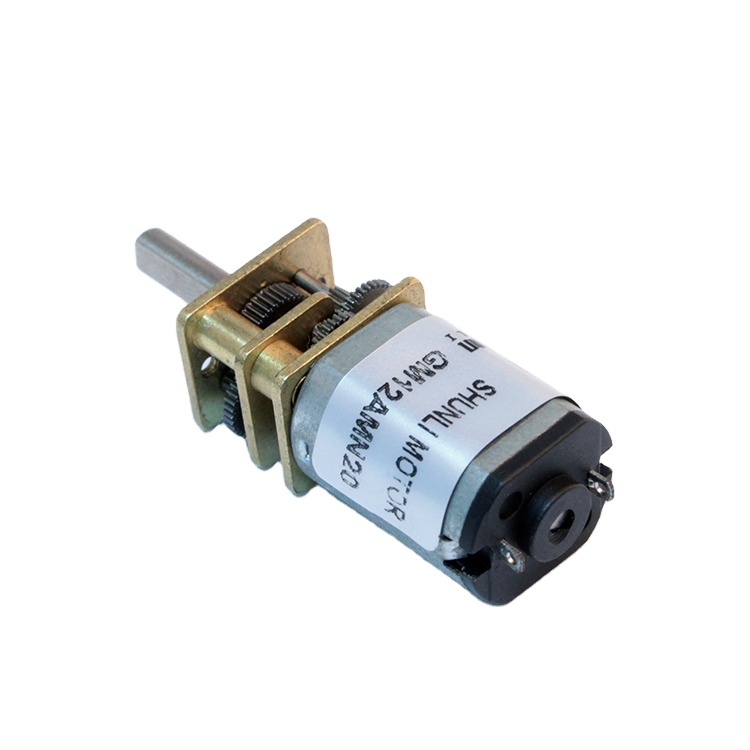

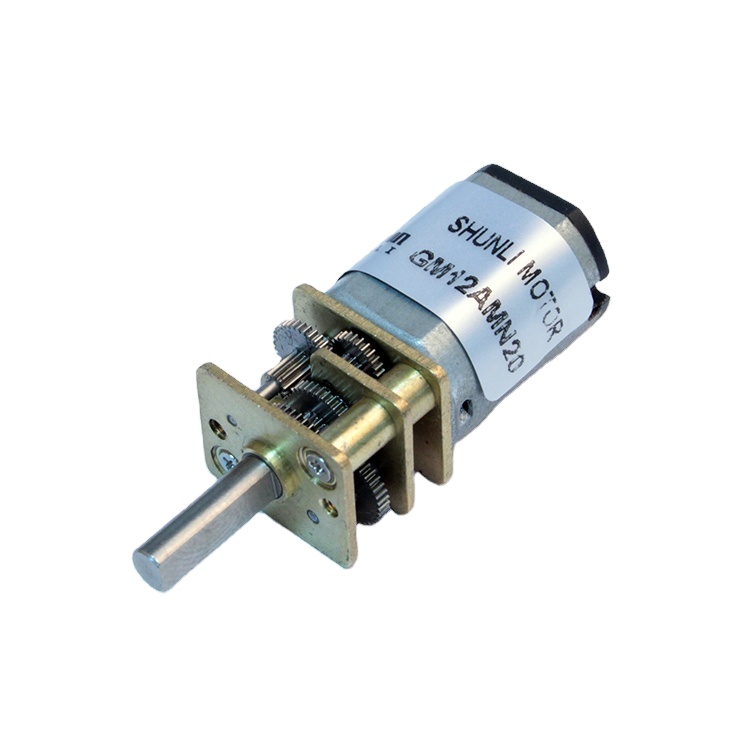

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

1 / 5

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

Send Inquiry

Product Description

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

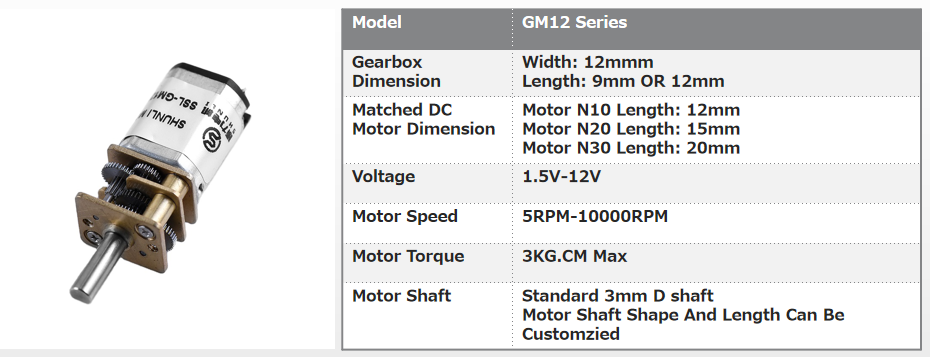

Product Details

⚙️ Motor Customized Specification, Please Contact Us.

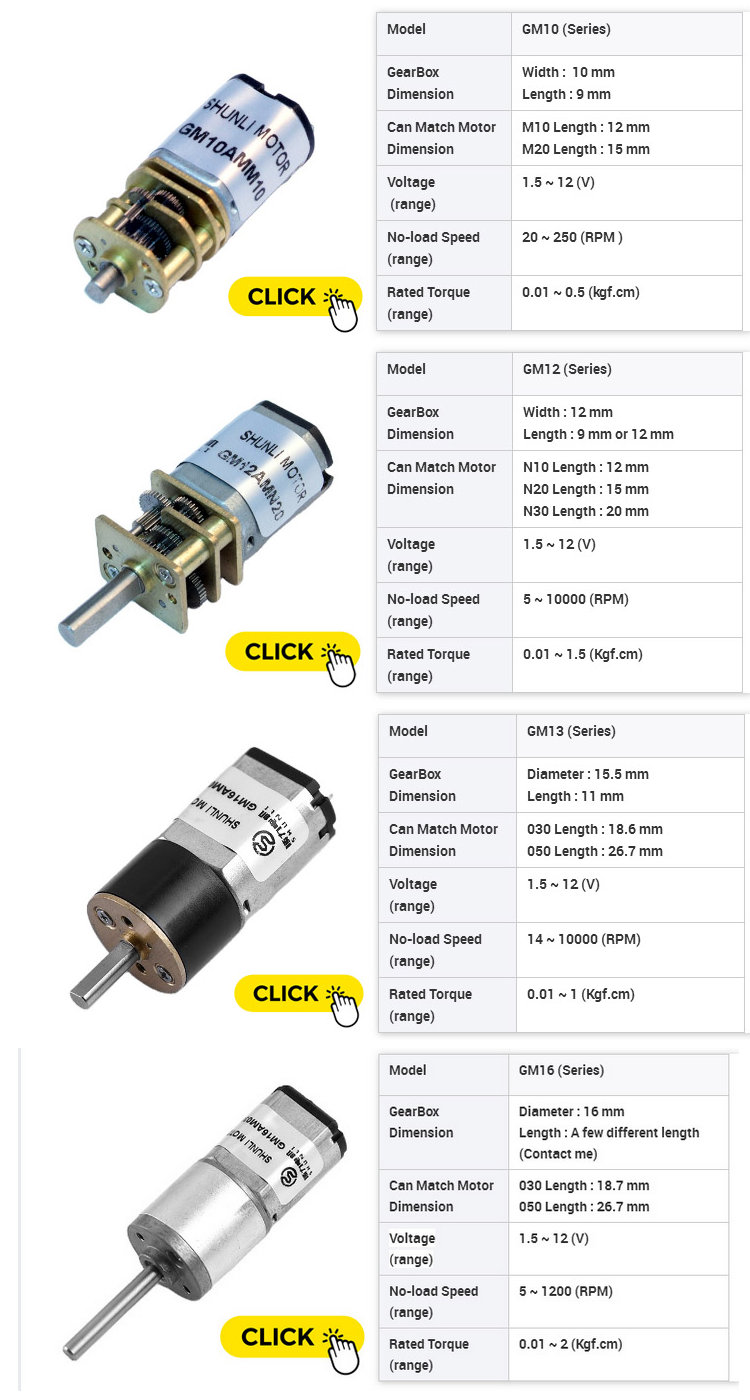

Motor customized features specification chart

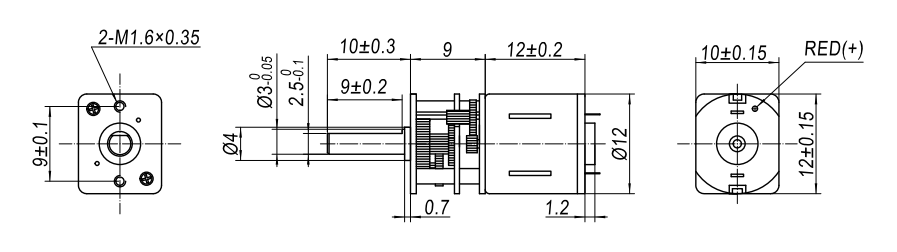

Reference Drawing

------ GM12AMN10

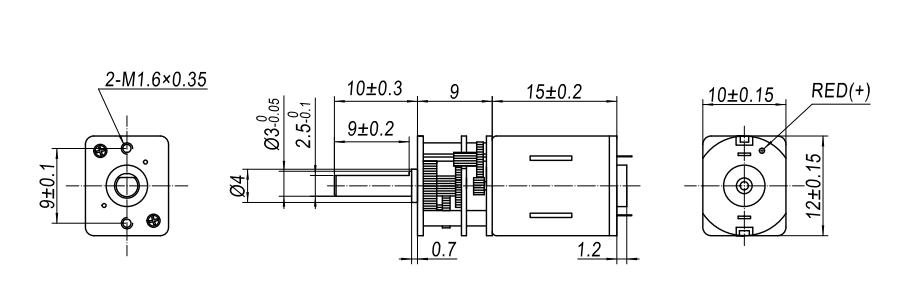

------ GM12AMN20

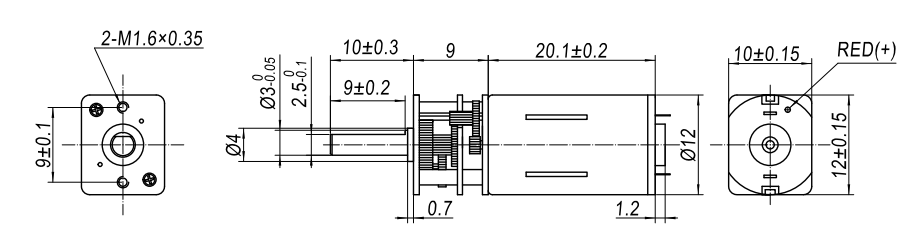

------ GM12AMN30

Reference Datasheet

Gearmotor Model	Ratio	Rated Voltage (V)	No-Load		Rated			Stall
			Speed	Current	Speed	Current	Torque	Current	Torque
			RPM	mA	RPM	mA	mN.m / gf.cm	mA	mN.m / gf.cm
GM12AMN10-298K	1 : 298	4.5~6VDC	70	≤ 80	55	≤ 285	5.5/55	≤ 700	210/2100
GM12AMN20-150K	1 : 150		92	≤ 55	80	≤ 140	2.8/28	≤ 700	120/1200
GM12AMN30-10K	1: 10		2500	≤ 60	2200	≤ 195	4.0/40	≤ 400	26/260

Gearbox Technical Data

Number of stages	2	4	5	7
Gearbox Length “L”(mm)	9.0	9.0	9.0	12.1
Ratio	3K / 5K / 10K	17K/20K/30K/36K/ 50K/63K/100K	110K/150K/210K/ 250K/298K/380K	372K/625K/1000K
Max. Rated Torque	200 gf.cm	600 gf.cm	1000 gf.cm	1500 gf.cm
Max. Gear Breaked Torque	600 gf.cm	1500 gf.cm	2800 gf.cm	3500 gf.cm
Gearbox Efficiency	80%~90%	65%~70%	55%~60%	45%~50%

Application

Certifications

Customer Evaluation

Why Choose Us

🏭

1. Production Power

We are a factory specializing in producing motors for more than 14 years. With three specialized production bases, a professional R&D team, mature management, and experienced engineers, we ensure a reliable and pleasant partnership experience.

🔎

2. Quality Control

In order to confirm product quality, every step of the process is checked thoroughly from receiving raw materials to final delivery. Quality is the baseline of our business development.

Our Services

High credibility and reliable gold standard service record.

100% on-time delivery rate guarantees your product arrives exactly when needed.

Standard samples completed within 2 weeks. Custom sample production takes within 3 weeks.

Highly responsive communication with message replies delivered within 2 hours.

May Be You Like

Give us a chance to cooperate with you!

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory specializing in micro DC motors and DC gear motors with more than 14 years of manufacturing experience.

What is the payment term for a new customer?

We can set up an online Trade Assurance Order for new customers to pay securely online using major credit cards (Mastercard, Visa), PayPal, or T/T wire transfer.

I cannot find a suitable motor on your website. Can you customize the motor for me?

Yes, we provide full custom design services to configure a suitable motor based on your precise specification requirements.

Do you have certificates for the motors?

Yes, our motors are certified with CE, FCC, ISO, and other standard certificates. We can also apply for additional specific certificates if your local market requires them.

How is your Quality Control managed?

We have dedicated quality assurance personnel checking every step of the production line. After assembly, our products undergo complete machine testing including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

What is the typical production timeline?

Standard samples are typically prepared within 2 weeks, while custom designs can take up to 3 weeks. Mass production timeline is determined based on order quantity and design complexity.
