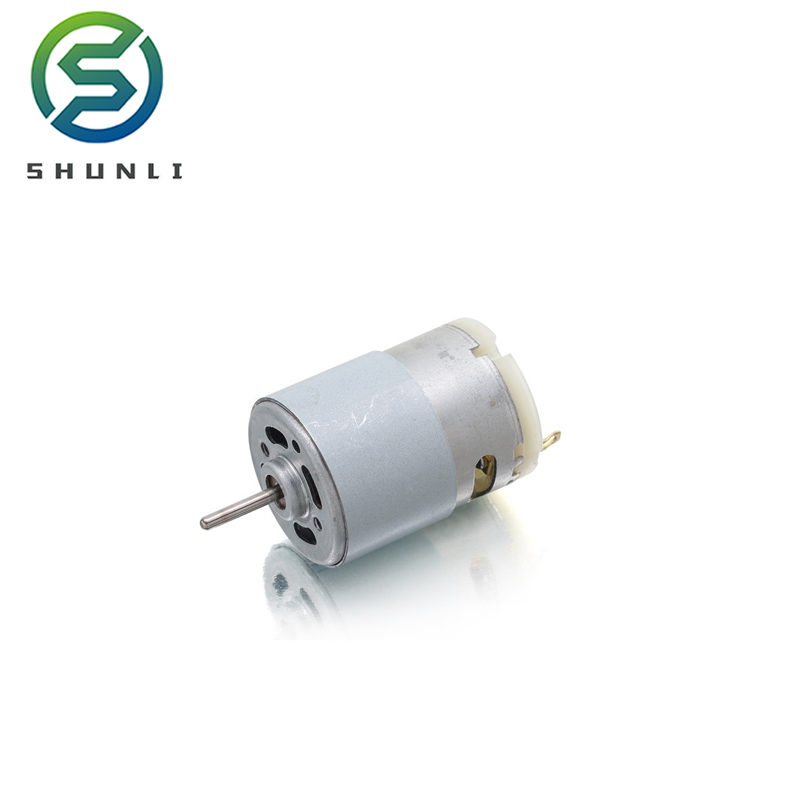

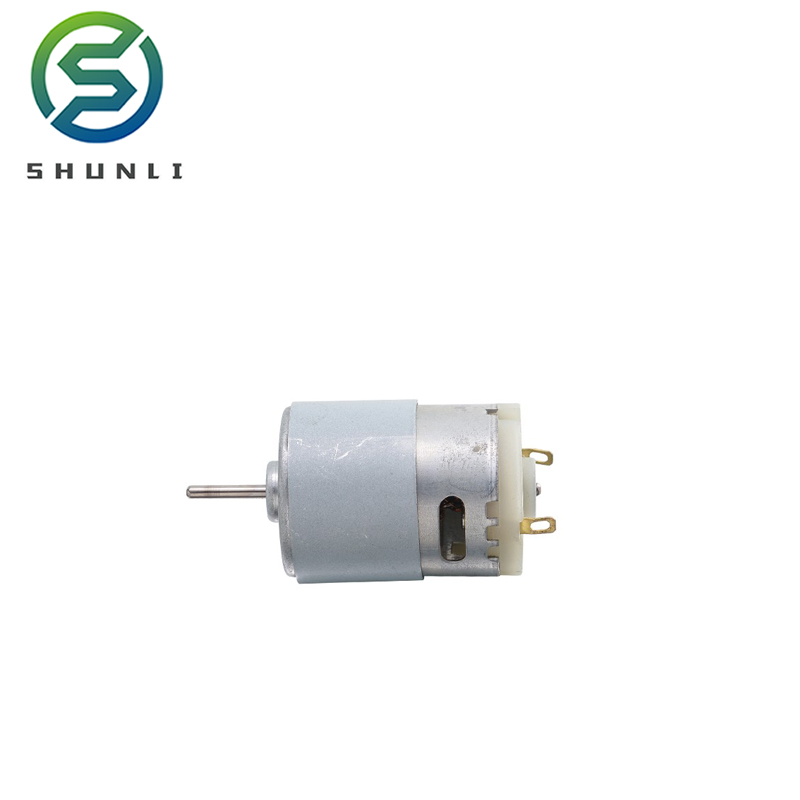

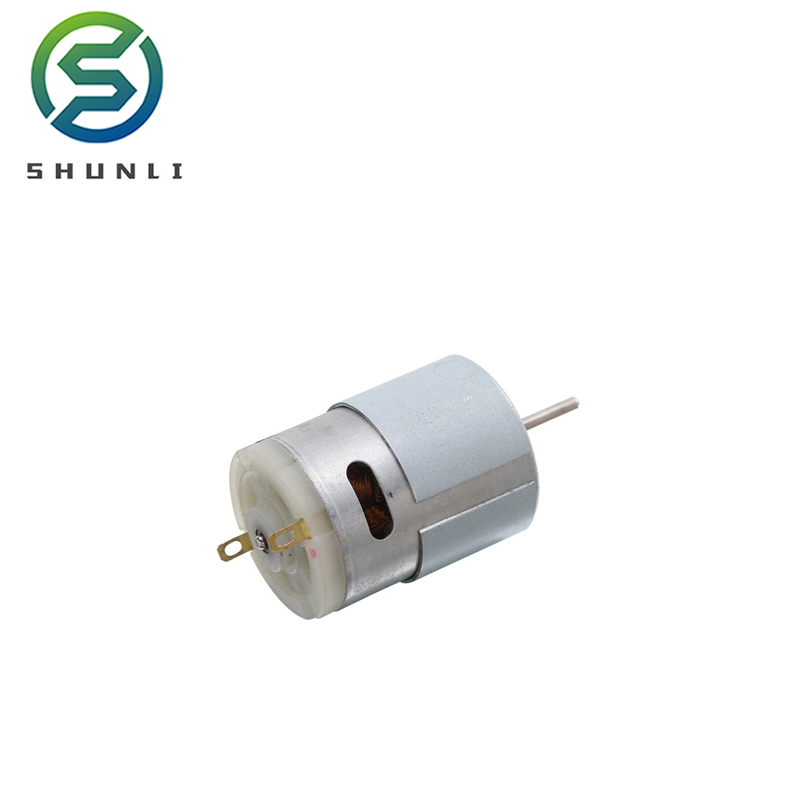

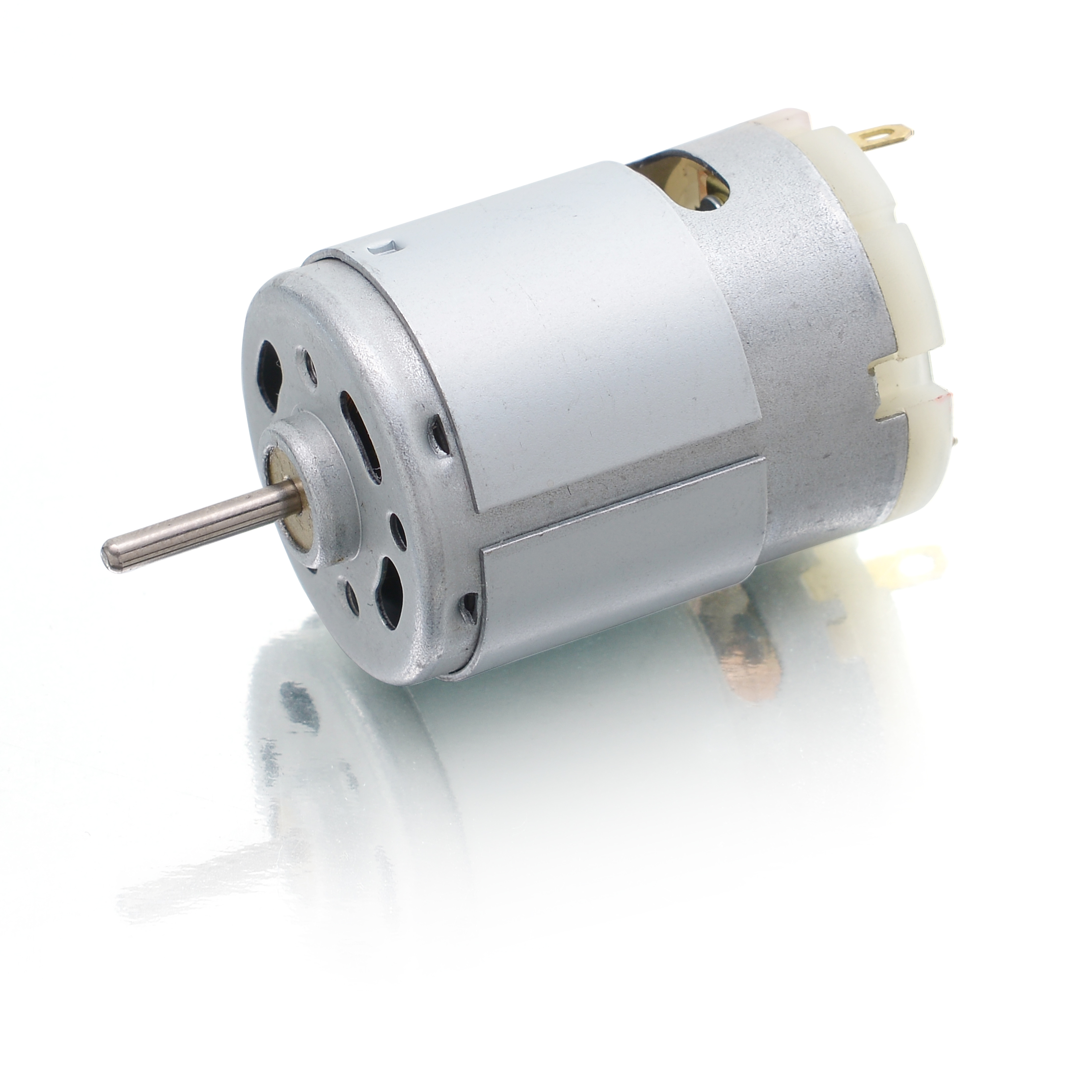

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

Promotion

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

Product Description

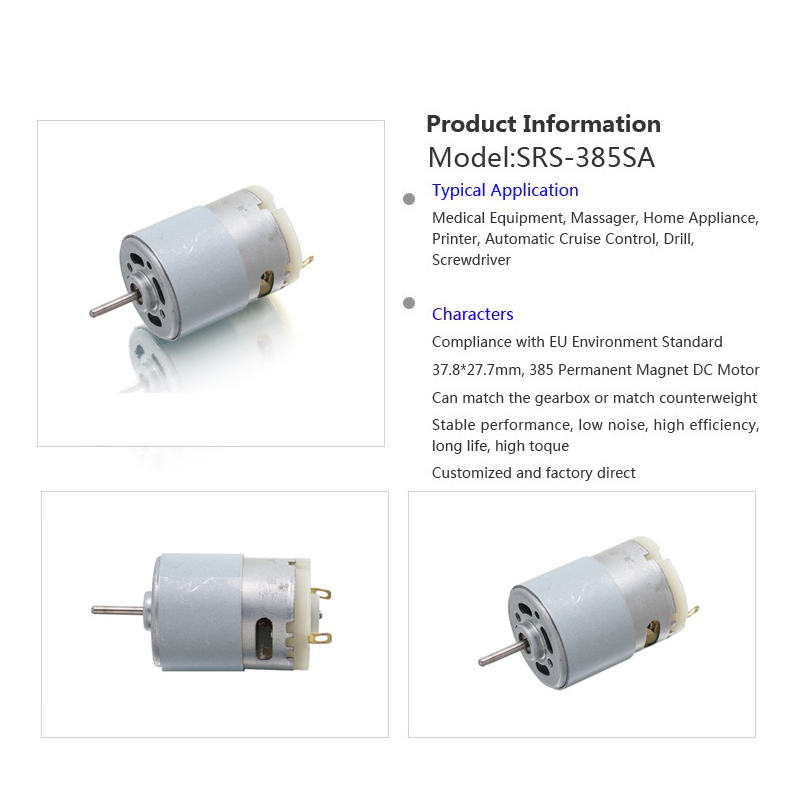

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-380SH	4052	3.0~6.0	4.8VDC	7800	0.32	6701	1.95	9.9 / 101	6.98	11.9	70.6 / 720
RS-380SH	3557	6.0~12.0	12VDC	21200	0.44	18367	2.85	11.26 / 114.9	21.68	18.5	84.3 / 860
RS-385SH	17110	6.0~24.0	24VDC	11000	0.15	9034	0.69	10.7 / 109	10.12	3.16	59.8 / 610
RS-385SH	2267	6.0~12.0	12VDC	10000	0.17	8340	0.85	7.5 / 76.5	6.53	4.29	45 / 459

Application

Our Company

Established in 2005, the high-tech enterprise integrates the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, and are exported to more than 50 countries and regions.

Production Process

Certifications

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors with more than 14 years of experience.

What is the payment term for new customers?

We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal, TT, and other methods.

I cannot find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customers' specific requirements.

Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, and other relevant certificates. If you have other specific certificate requirements, we can apply for them for you.

How is your Quality Control?

We have professional quality checking staff assigned to every production line process. After completing the assembly, we use dedicated quality machines to test the entire motor, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

Can I get samples of your motors for quality testing?

Yes, we offer sample support to verify the technical specifications and build quality before going ahead with large-volume production.

Looking forward to your reply!
