Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

Send Inquiry

Product Description

Powerfull 20000rpm RS 775 Mini High Speed 24 Volt DC Motor

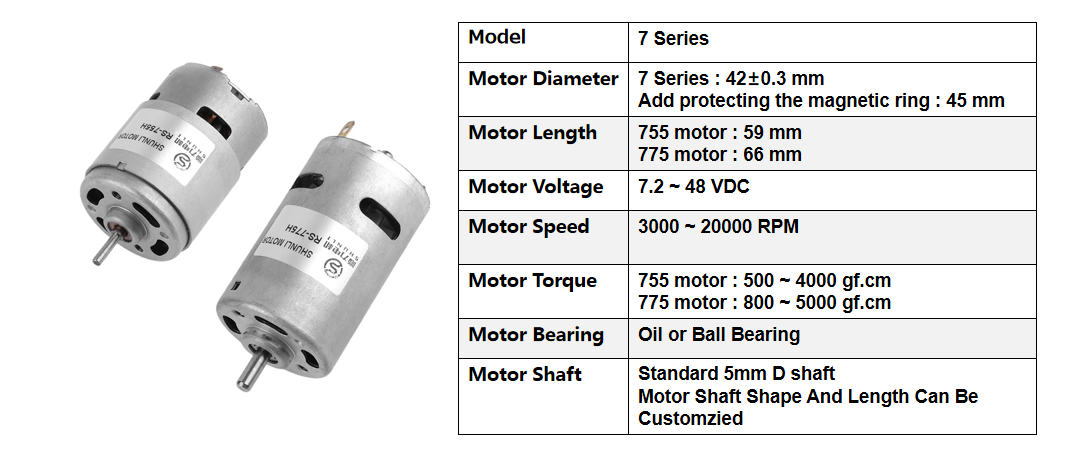

Product Details

Motor Customized Specification, Please contact us.

Reference Drawing

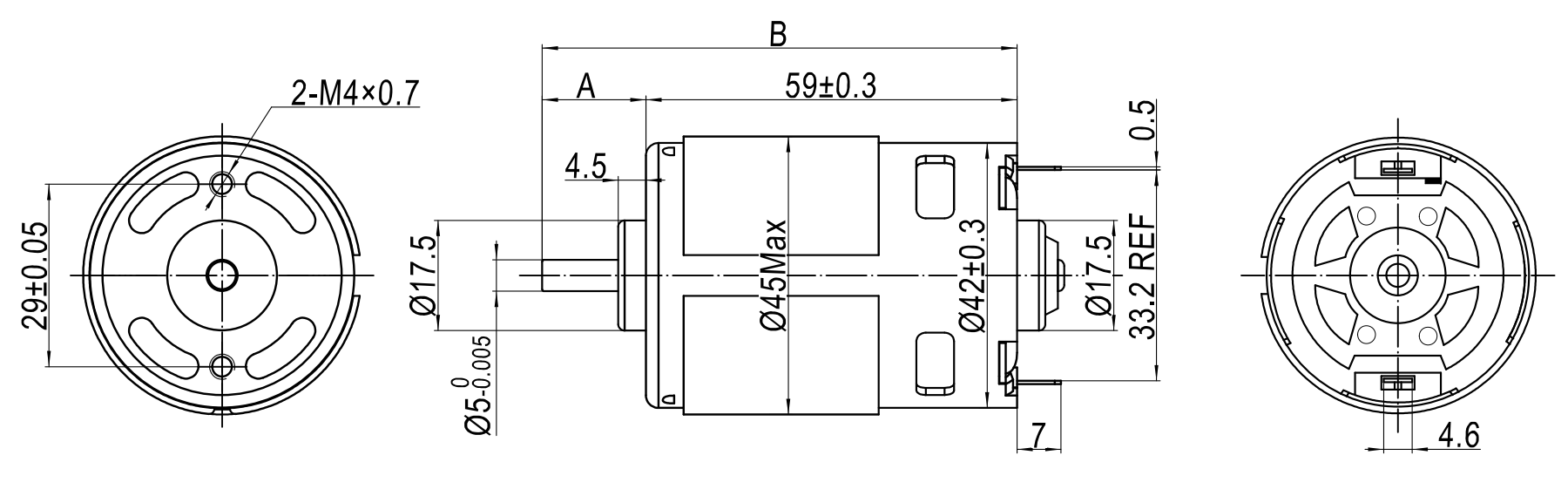

RS - 755 H

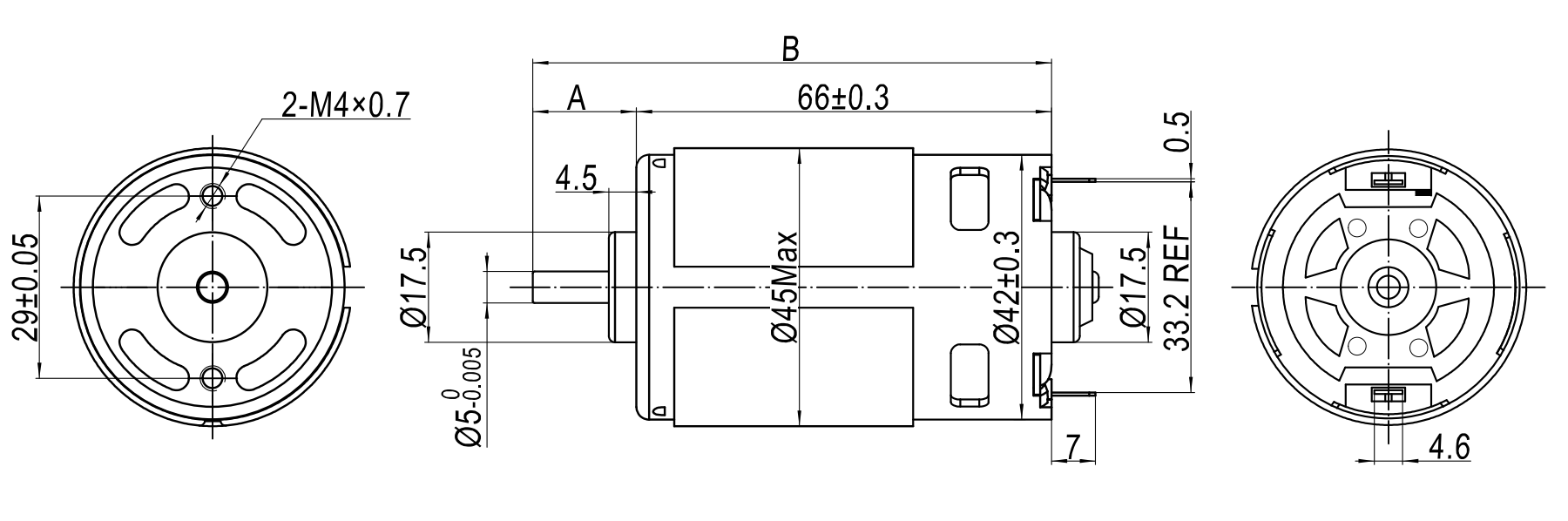

RS - 775 H

The length of shaft can be customized, Please contact us.

Technical Specifications

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-770H	8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81 / 826.2	111.8	115	666.9 / 6802
RS-775H	25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4 / 452.9	13.35	4.07	245.7 / 2506

Application

Certifications

Recommend Products

Contact Us

Looking forward to your feedback!

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for a new customer?

We can draw up an Online Assurance Order for our new customers, allowing online payments with Master Card, Visa, etc. Customers can also choose to pay with PayPal, TT, or other accepted methods.

I cannot find a suitable motor on your website. Can you customize the motor for me?

Yes, we can customize a suitable motor according to our customers' specific requirements.

Do you have certificates for your motors?

Yes, we have CE, FCC, ISO, and other key certifications. If you have additional certification requirements, we can apply for them for you.

How is your Quality Control managed?

We have professional checking staff on every production line process. After finishing the motor assembly, we conduct tests using our complete testing machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

Can the motor shaft length be customized?

Yes, the length of the shaft can be customized according to your specifications. Please reach out to us with your requirements.
