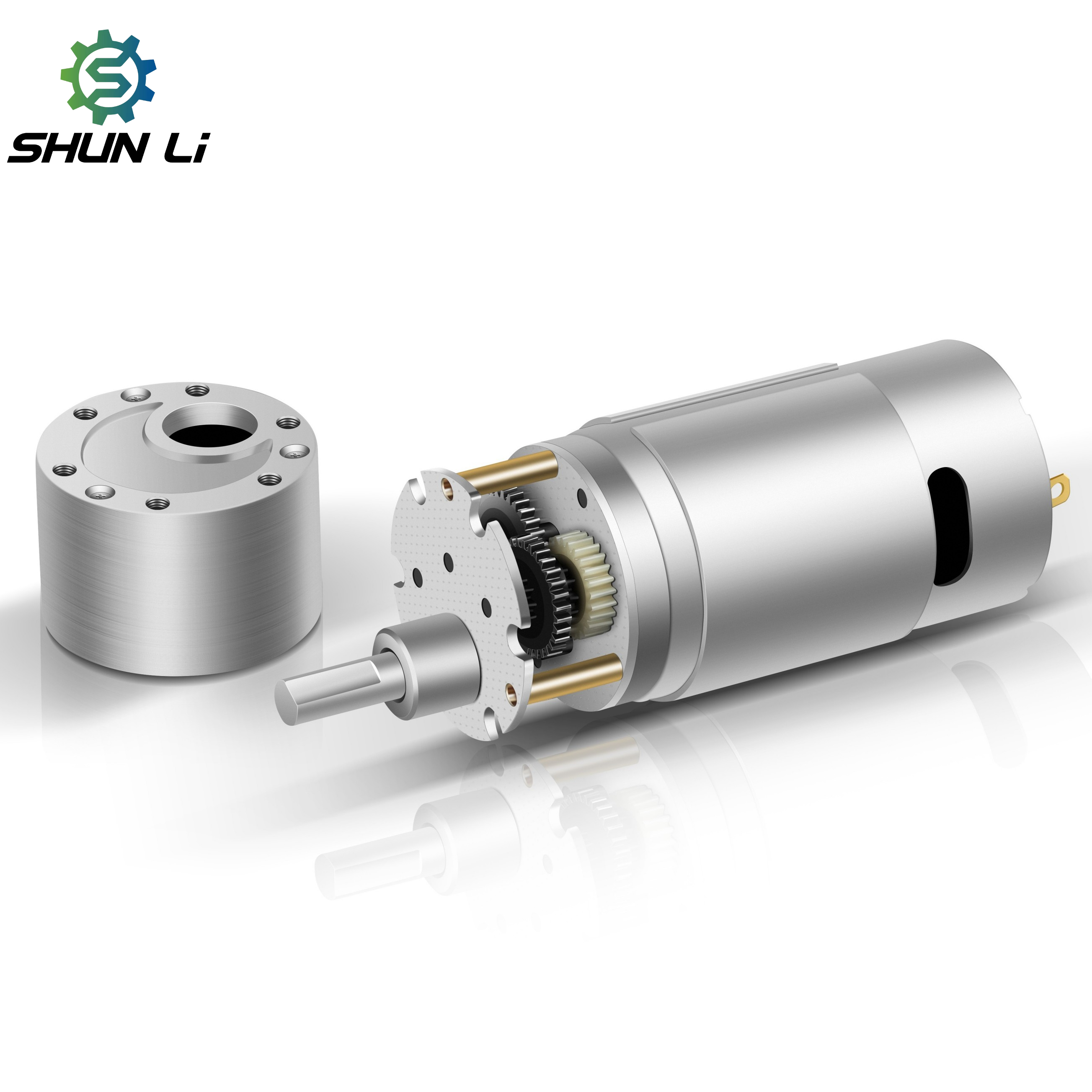

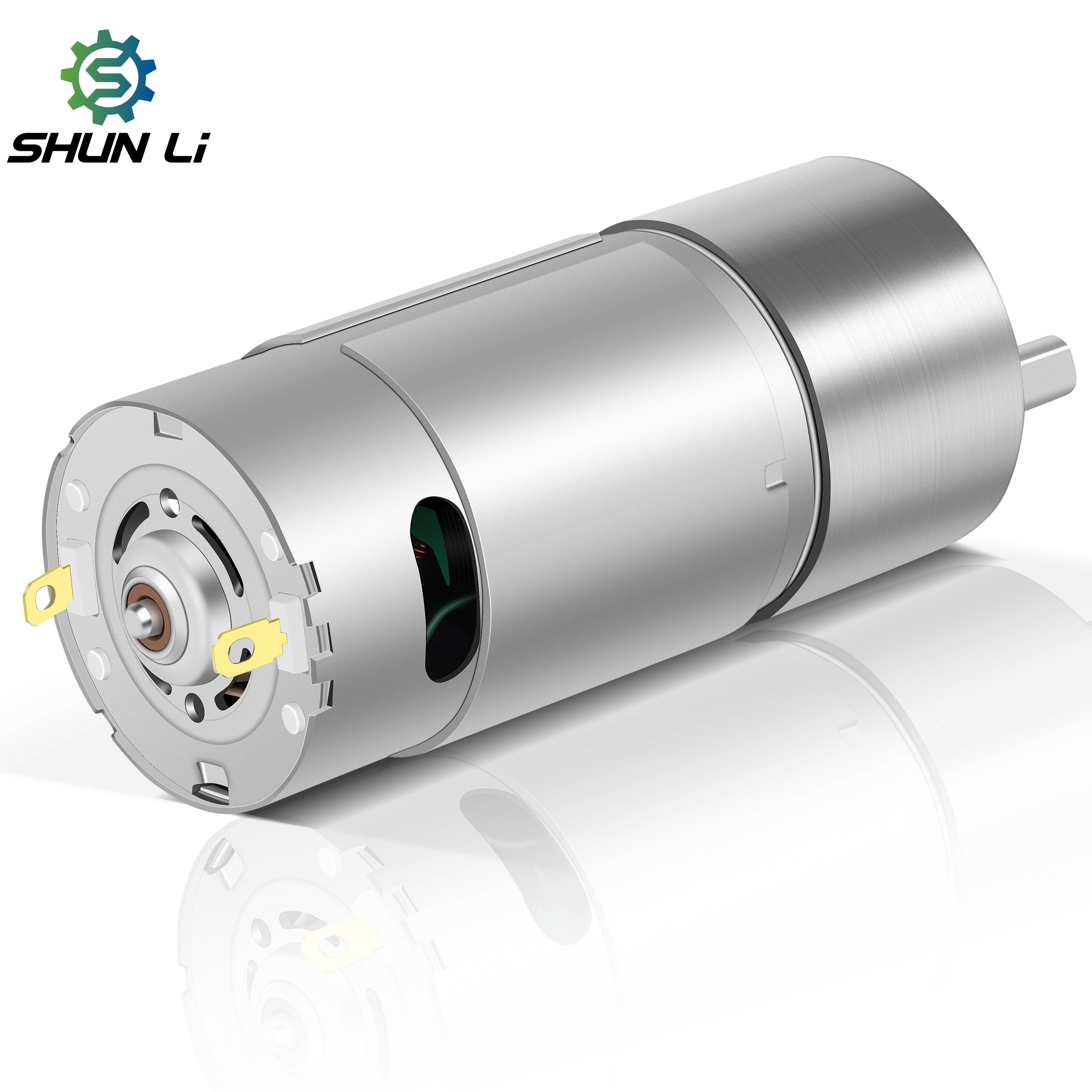

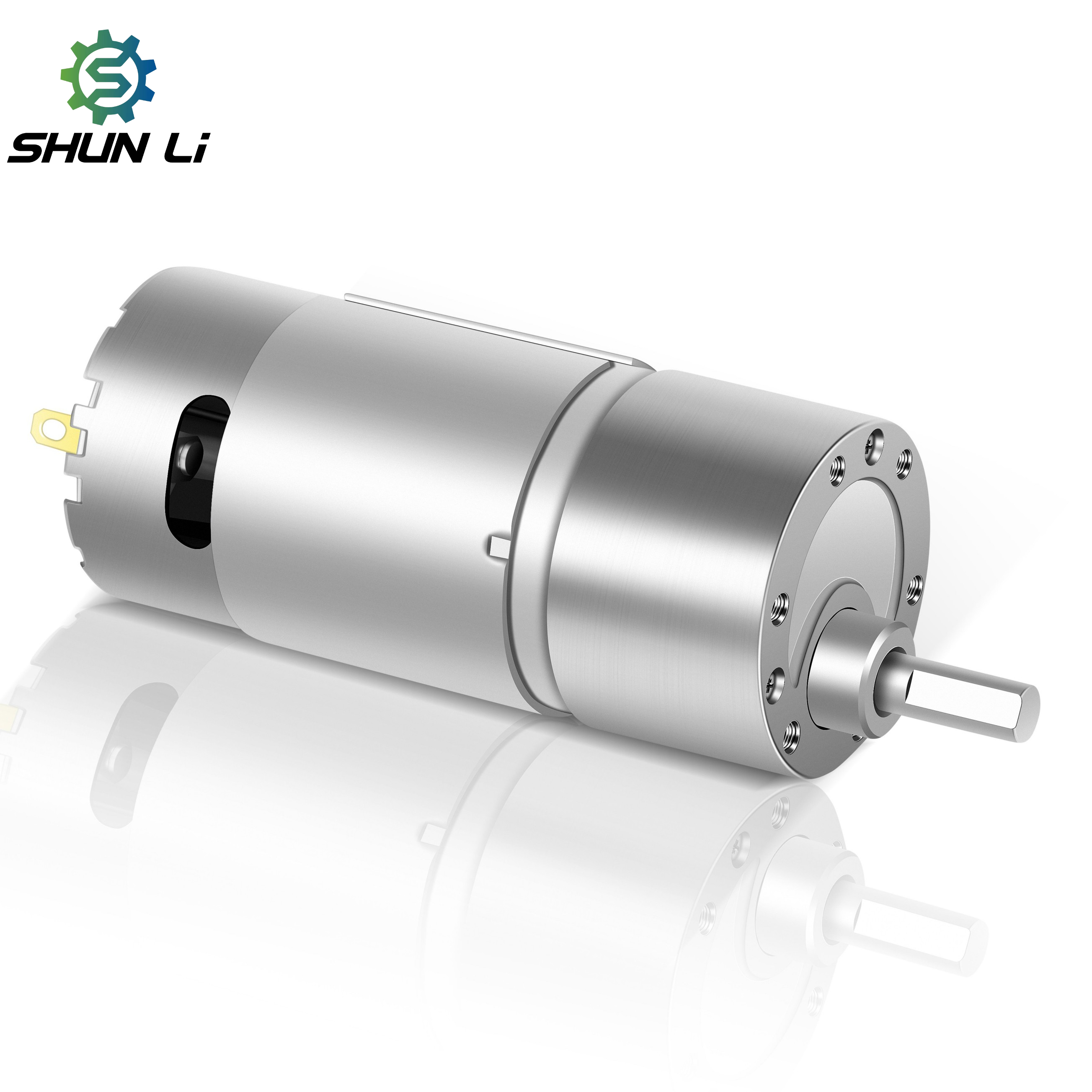

China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

Product Description

DC Gear Motor Banner
GM37BM545 Motor Details
Product Model GM37BM545/555/575
Gearbox Length 50mm-65mm
Speed 17.5RPM-240RPM
Voltage 24V/24V/12V
Torque 0.85 N.m/1.8 N.m/2.0 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

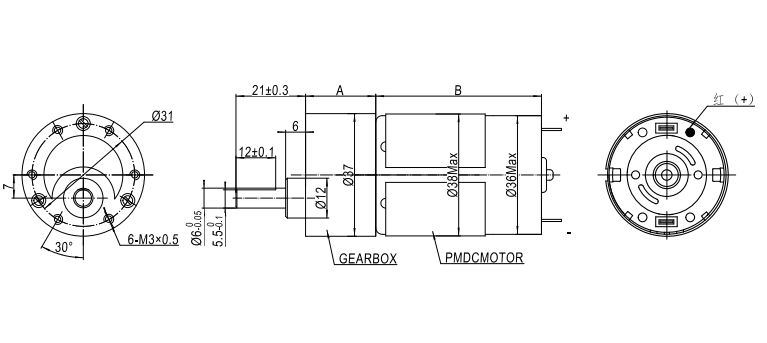

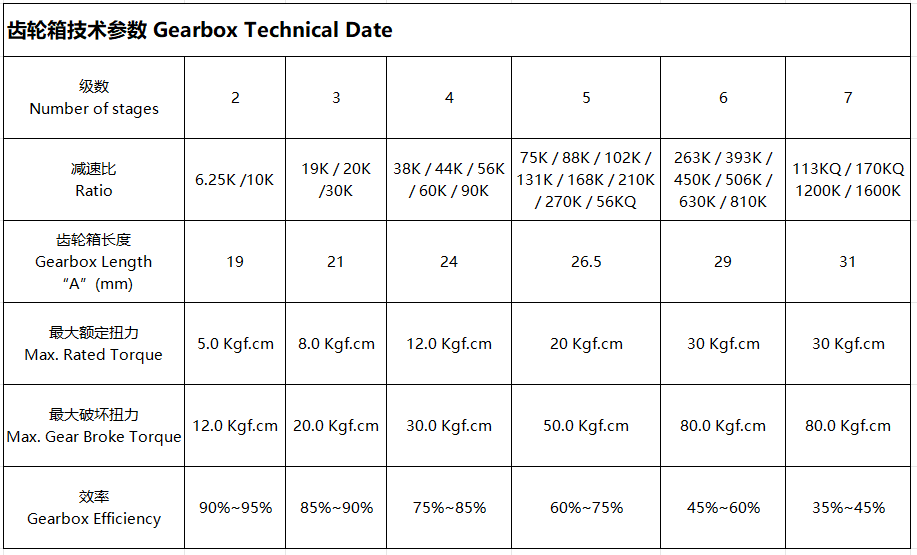

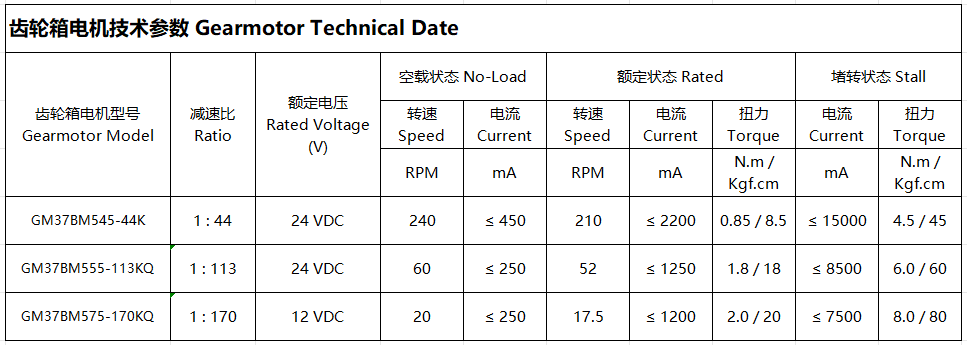

DC Motor Specifications Diagram 1 DC Motor Specifications Diagram 2 DC Motor Performance Chart
Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

Q: What is the payment term for a new customer?

A: We can draw up an Online Assurance Order for our new customer, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal, TT, etc.

Q: I can't find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer's requirements.

Q: Do you have certificates for the motors?

A: Yes, we have CE, FCC, ISO, etc. If you have other certification requirements, we can apply for them for you.

Q: How is your Quality Control?

A: We have professional inspection staff on every production line process. After completing the motor assembly, we use comprehensive testing machinery to verify performance. This includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers, etc.

Q: What is the typical lead time for samples and orders?

A: Standard sample lead time is generally 7-10 days, while bulk production orders normally take 25-30 days depending on the specific model specifications and quantity.
