Massager Hair Dryer Vibrator 7.2v 12v 24v Dc rs 360 365 Motors

1 / 4

Massager Hair Dryer Vibrator 7.2v 12v 24v Dc rs 360 365 Motors

Send Inquiry

Product Description

Massager hair dryer vibrator 7.2v 12v 24v dc rs 360 365 motors

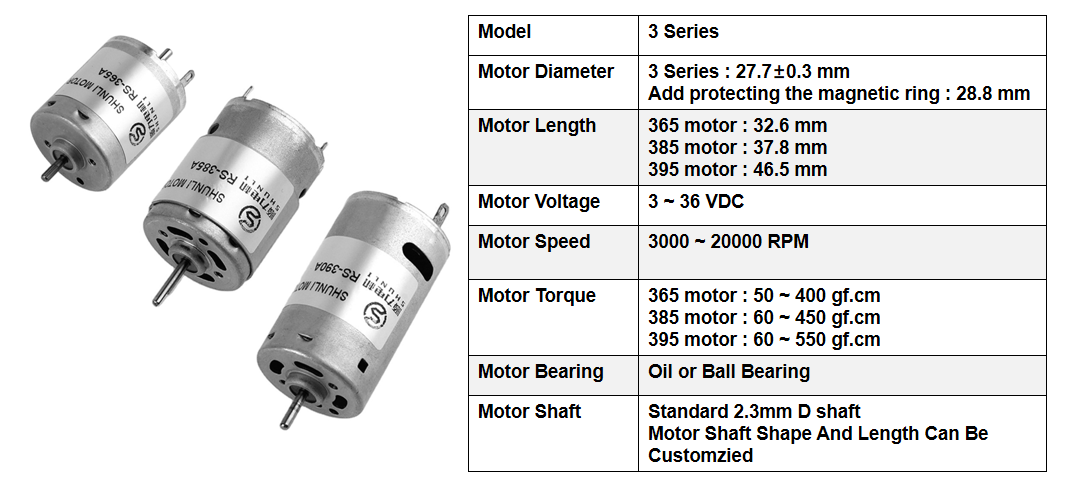

Product Details

Motor Customized Specification, Please contact us.

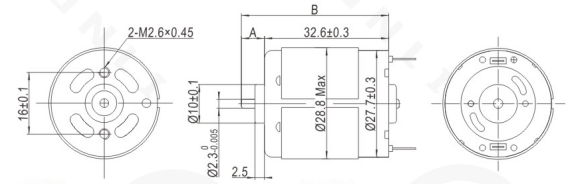

Reference Drawing

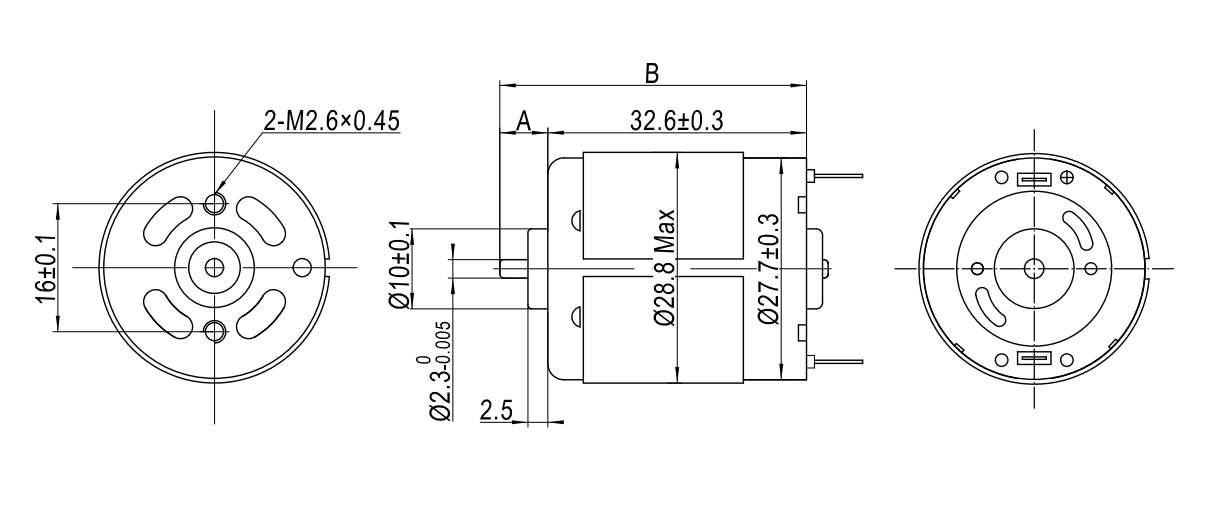

RS - 365

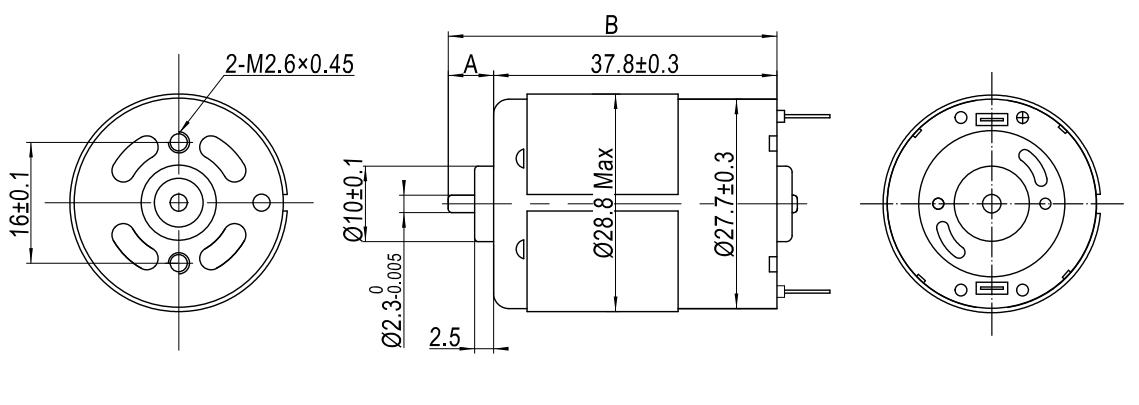

RS - 385

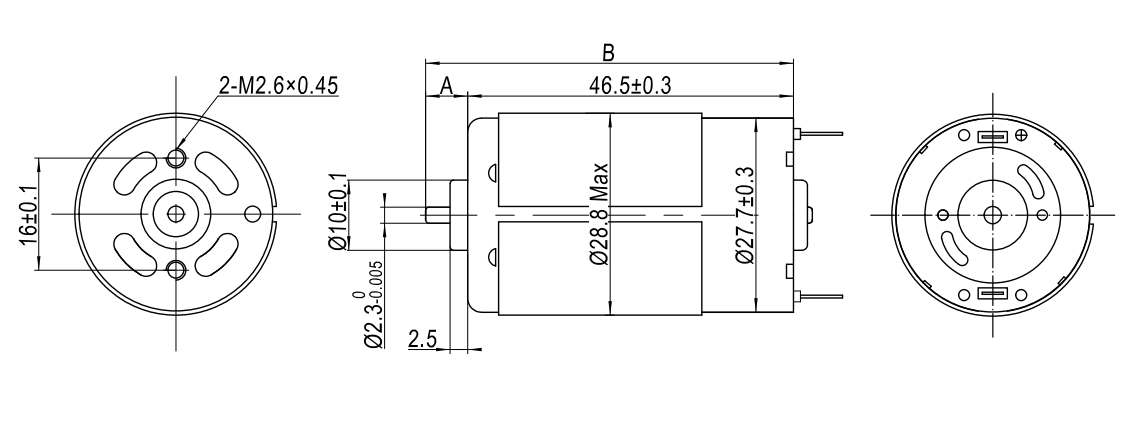

RS - 395

The length of shaft can be customized, Please contact us.

Reference Datasheet

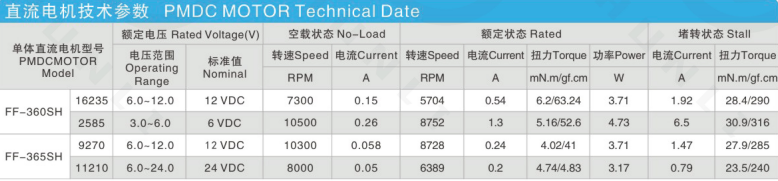

PMDC MOTOR Technical Data
PMDC MOTOR Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-360SH	16235	6.0~12.0	12VDC	7300	0.15	5704	0.54	6.2/63.24	3.71	1.92	28.4/290
RS-360SH	2585	3.0~6.0	6VDC	10500	0.26	8752	1.3	5.16/52.6	4.73	6.5	30.9/316
RS-365SH	9270	6.0~12.0	12VDC	10300	0.058	8728	0.24	4.02/41	3.71	1.47	27.9/285
RS-365SH	11210	6.0~24.0	24VDC	8000	0.05	6389	0.2	4.74/4.83	3.17	0.79	23.5/240

Application

Recommend Product

Certification

Customer Evaluation

Our Company

Established in 2005. It's a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.

Frequently Asked Questions

QAre you trading company or manufacturer?

We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

QWhat is the payment term for a new customer?

We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

QI can't find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customer's requirements.

QDo you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have other certificates requirement, we can apply it for you.

QHow is your Quality Control?

We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
