Product Description

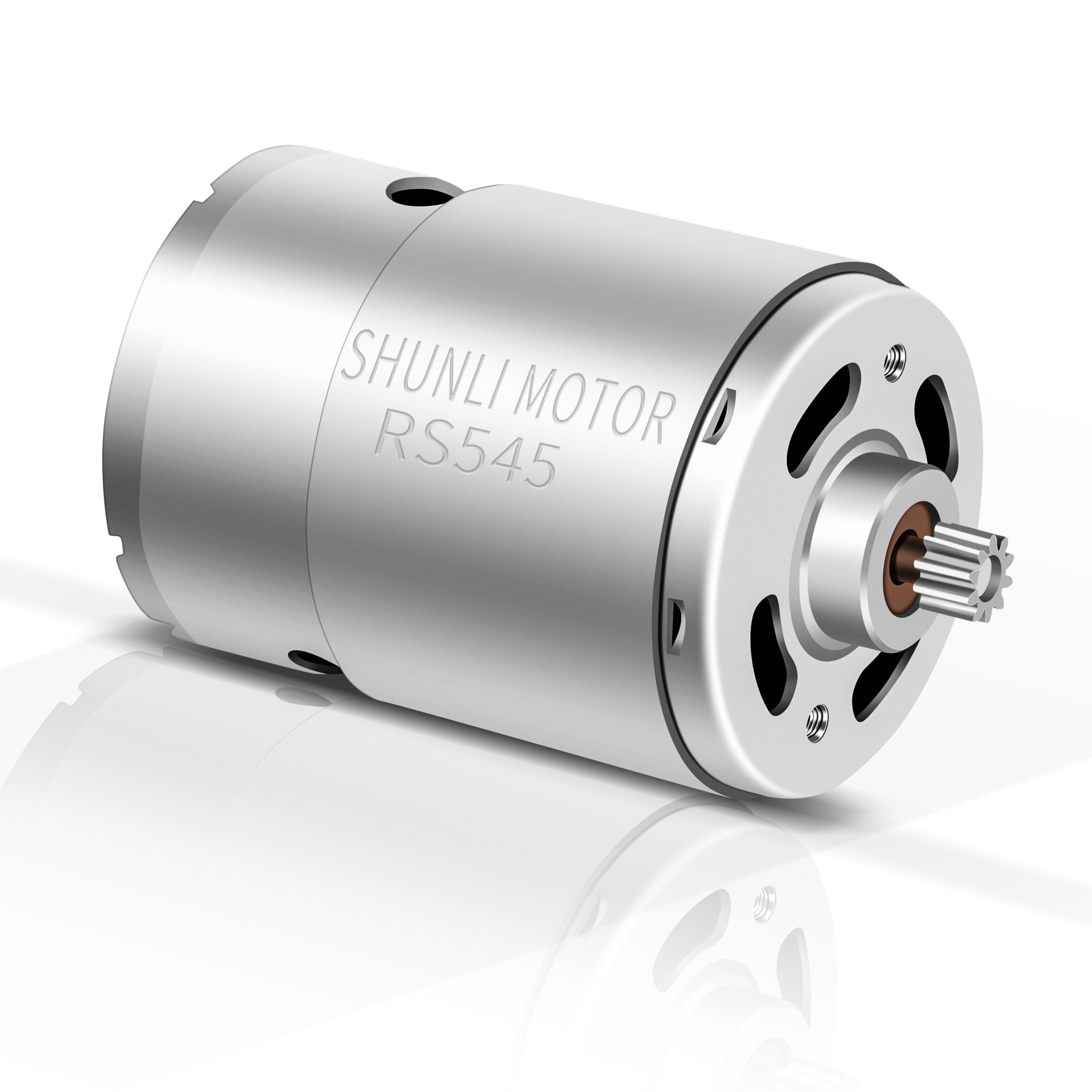

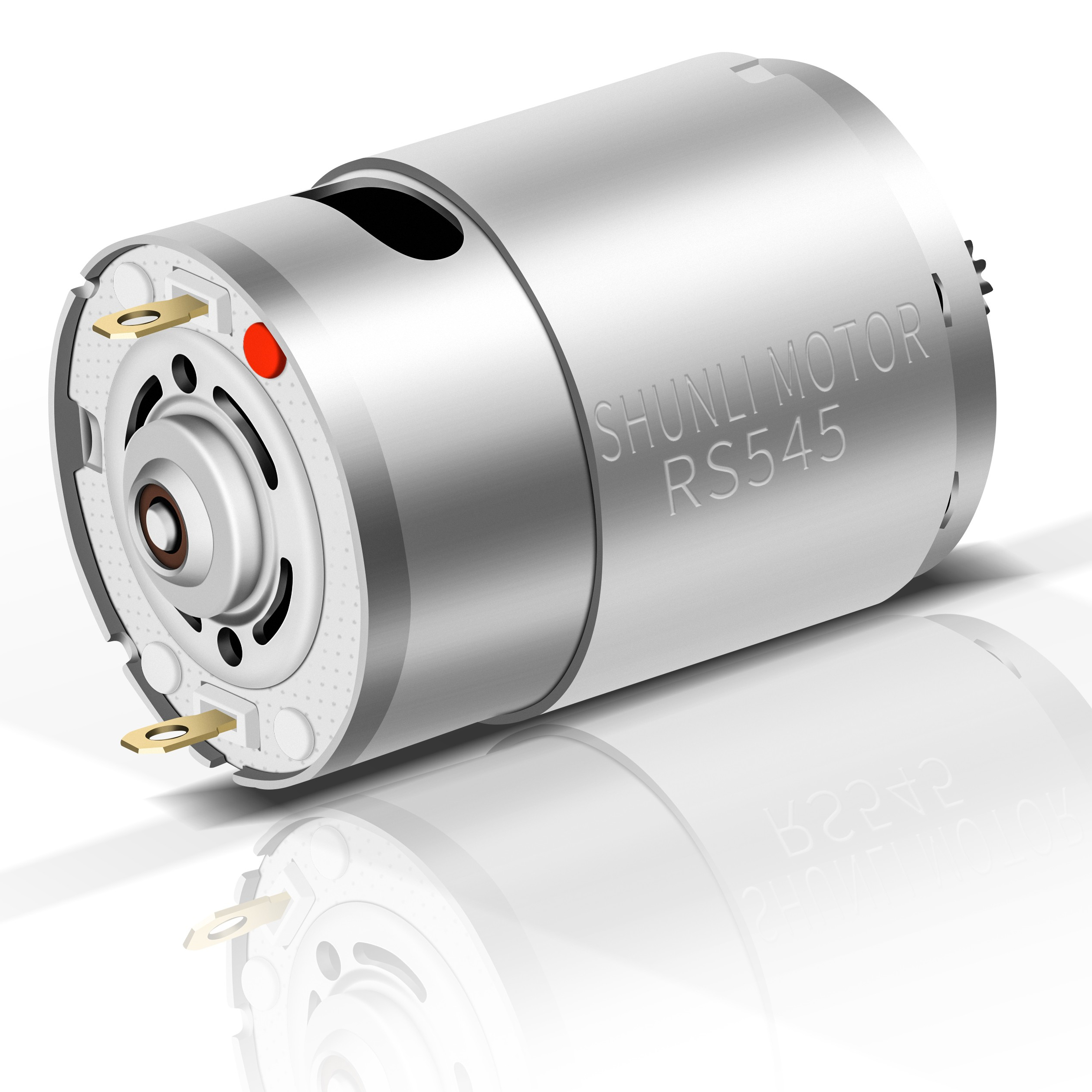

6v 12v 24v micro motor electric car motor micro dc motor
Product Details
💡
Motor Customized Specification, Please contact us for customized designs.

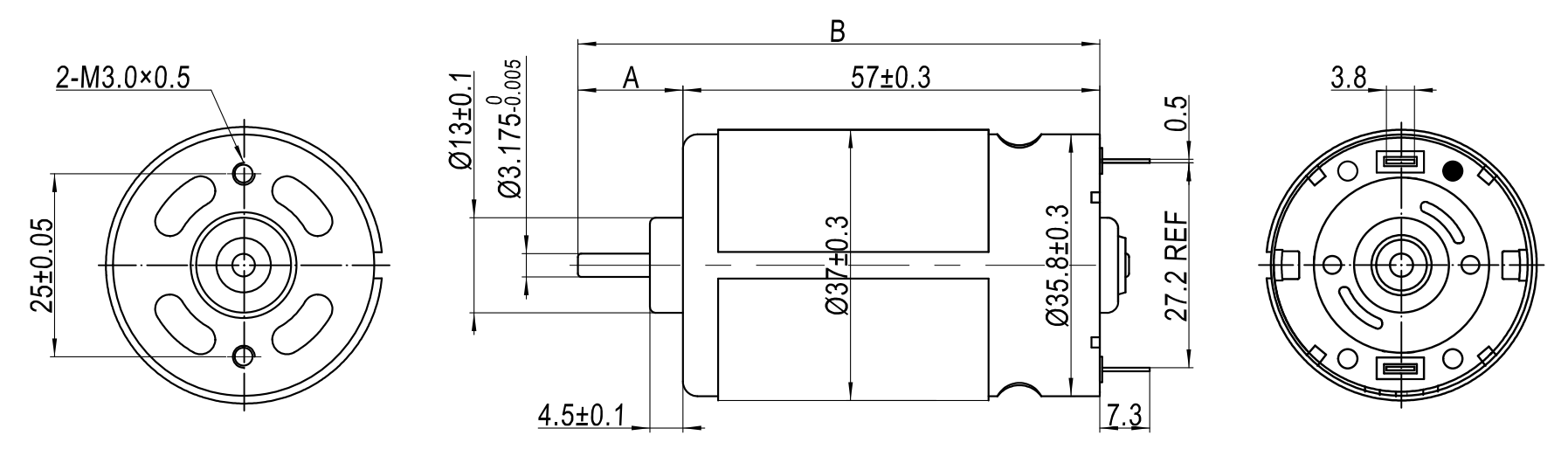

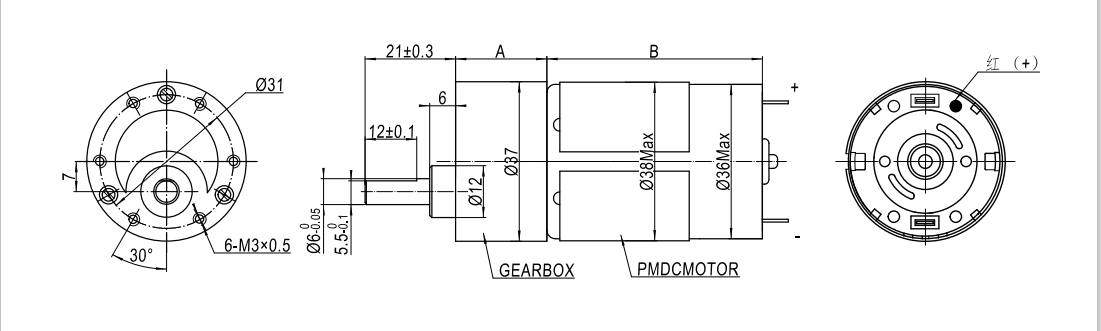

Reference Drawing
------ RS - 545 A
------ RS - 555 A
------ RS - 575 A
⚙️
The length of shaft can be customized, Please contact us with your specifications.
Reference Datasheet
| PMDC MOTOR Technical Data |
| Model |
Rated Voltage(V) |
No-Load |
Rated |
Stall |
| Operating Range |
Nominal |
Speed |
Current |
Speed |
Current |
Torque |
Power |
Current |
Torque |
| RPM |
A |
RPM |
A |
mN.m / gf.cm |
W |
A |
mN.m / gf.cm |
| RS-550H |
23128R |
6.0~24.0 |
24VDC |
4500 |
0.1 |
3932 |
0.39 |
25.7/262 |
10.6 |
4.8 |
204/2080 |
| 6034 |
6.0~12.0 |
12VDC |
16000 |
1.12 |
13613 |
4.96 |
25.6/261.3 |
40.36 |
48.89 |
281.4/2870 |
| RS-555H |
3540 |
6.0~12.0 |
12VDC |
7800 |
0.3 |
6708 |
1.84 |
21.9/223.4 |
15.35 |
11.31 |
156/1591 |
| 23100 |
6.0~24.0 |
24VDC |
7000 |
0.14 |
6004 |
0.77 |
19.2/195.8 |
12.09 |
4.2 |
124.5/1270 |
Frequently Asked Questions
🔹 Q1: What operating voltage options are available for these micro DC motors?
A1: These micro DC motors standardly support operating ranges of 6V, 12V, and 24V. They can be engineered to support voltages between 6.0V and 24.0V depending on the selected windings.
🔹 Q2: Can the motor shaft dimensions be modified for customized designs?
A2: Yes, the length, shape, and features (such as D-cut, round, or splined) of the output shaft can be customized according to your mechanical drawing requests.
🔹 Q3: What is the differences between RS-545 A, RS-555 A, and RS-575 A models?
A3: The models differ primarily in physical dimensions, nominal speed, rated torque, and power output. Please refer to our Reference Drawing section for precise dimensional comparisons.
🔹 Q4: Are these micro DC motors suitable for electric car applications?
A4: Yes, these motors are widely used in electric toy cars, power tools, automotive actuators, personal mobility equipment, and other smart home appliances requiring reliable torque and speed.
🔹 Q5: How do I select the right motor specifications for my application?
A5: You can review our Reference Datasheet for values like No-Load Speed (RPM), Rated Torque (mN.m), and Stall Current. We can adjust the windings, magnets, and mechanical interfaces to match your torque-speed requirements.
🔹 Q6: Do these motors support customization of the mounting interfaces?
A6: Yes, mounting hole spacing and thread sizes can be customized within structural limitations. Please share your specification sheet or drawing to verify compatibility.
