Goaxis Pro
1 / 5
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage (V) | Rated Voltage | Speed | Current | Speed | Current | Torque | Power Output | Stall Torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay via PayPal, TT, and other standard options.
Yes, we can customize a suitable motor according to our customers' specific requirements.
Yes, we have CE, FCC, ISO, and other relevant certificates. If you have other specific certificate requirements, we can apply for them accordingly.
We have professional inspection staff on every production line process. Once assembly is complete, we use dedicated quality control equipment for thorough testing. Our testing includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

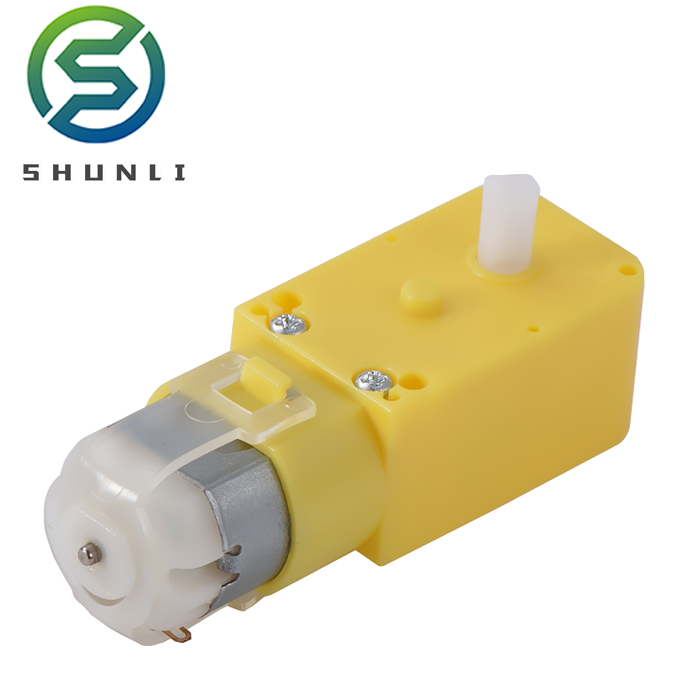

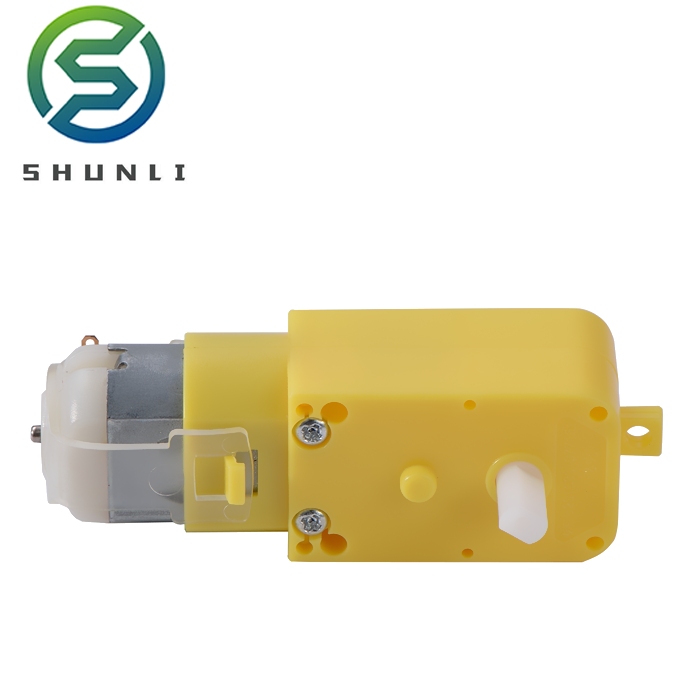

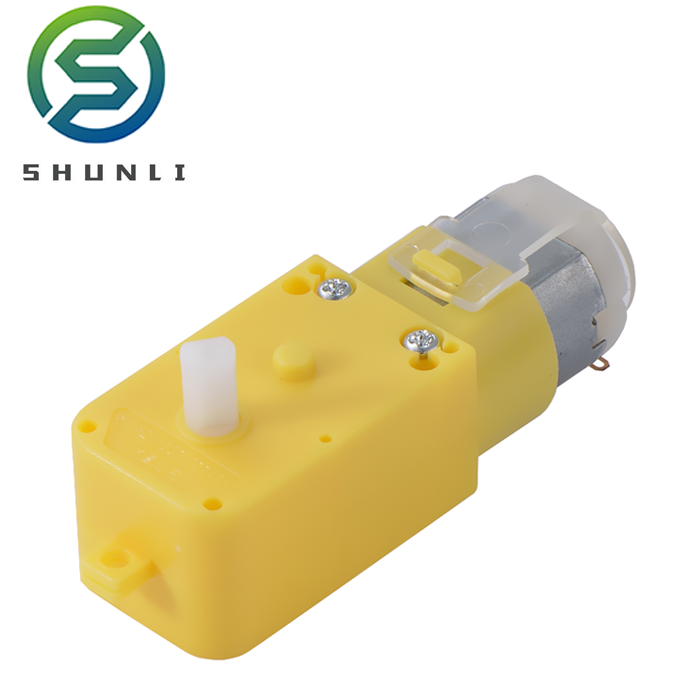

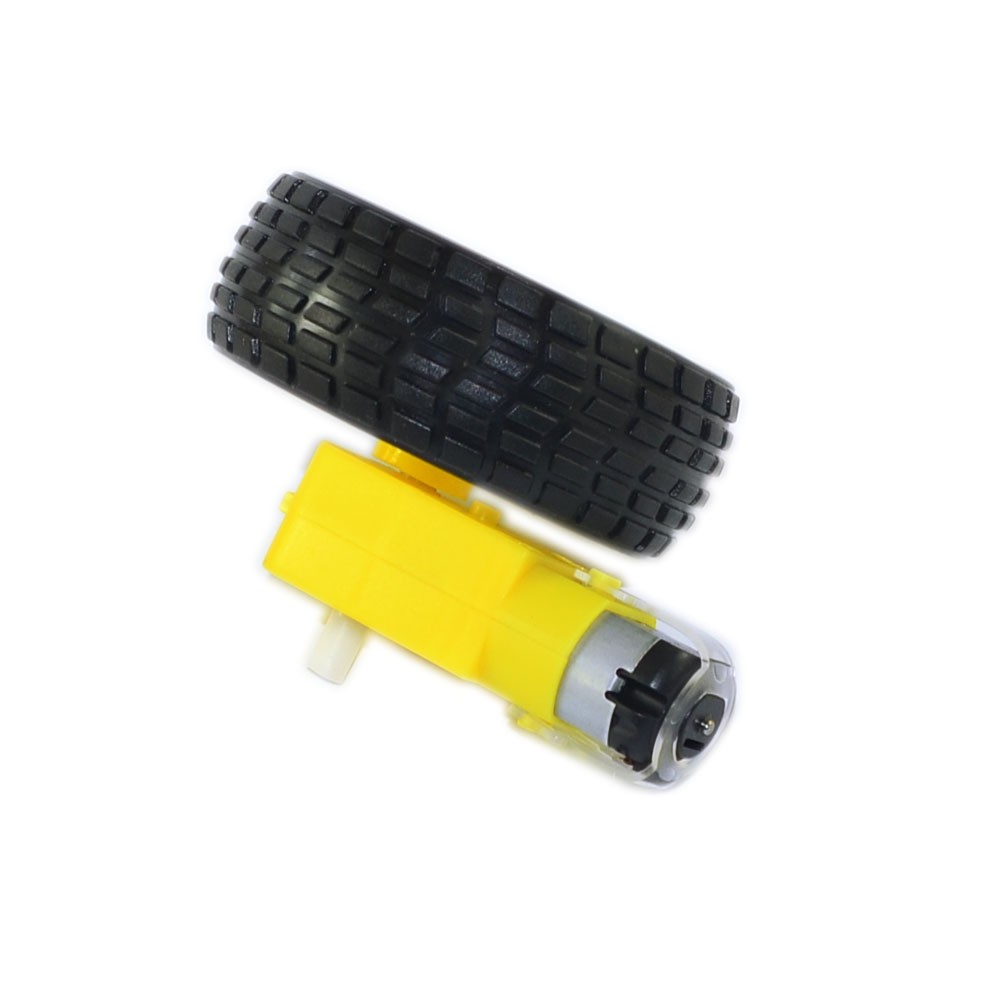

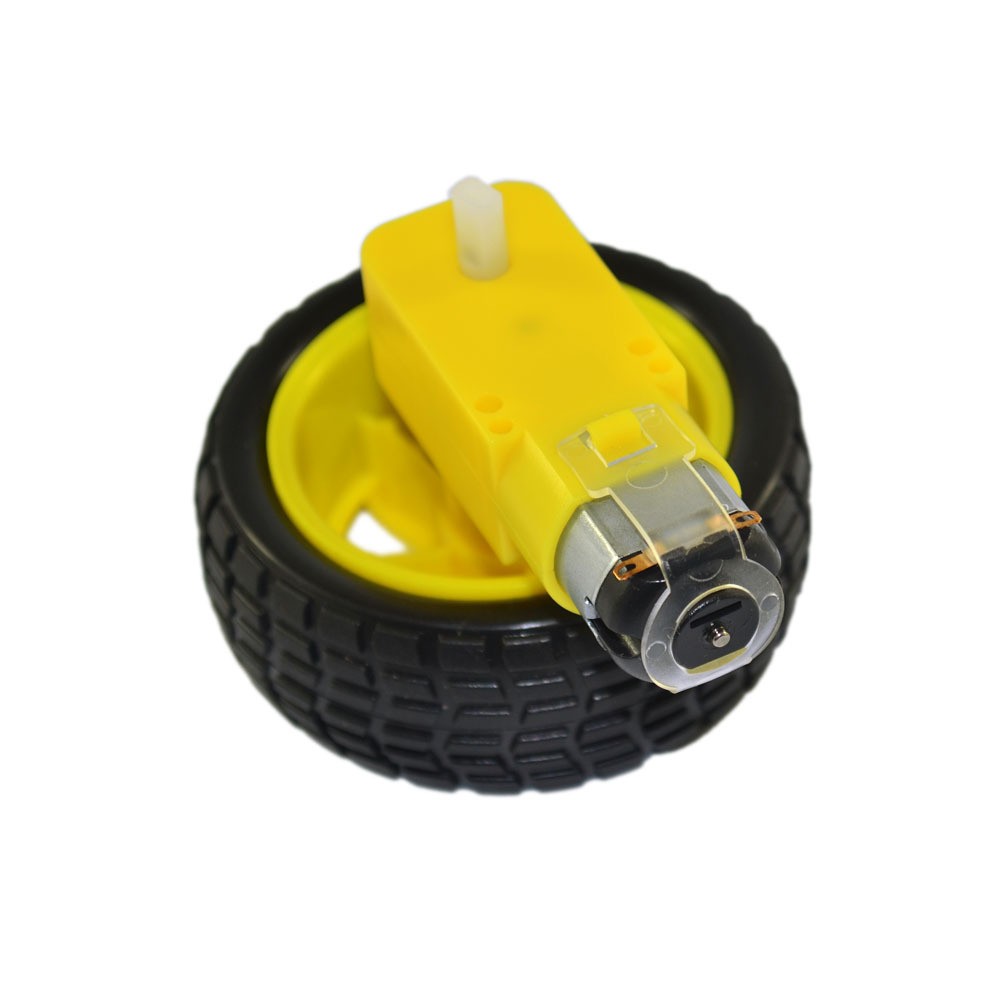

These 1.5v, 3v, and 4.5v mini DC gear motors are perfectly suited for toys, toy cars, and robot construction projects that require a reduction plastic gearbox.
