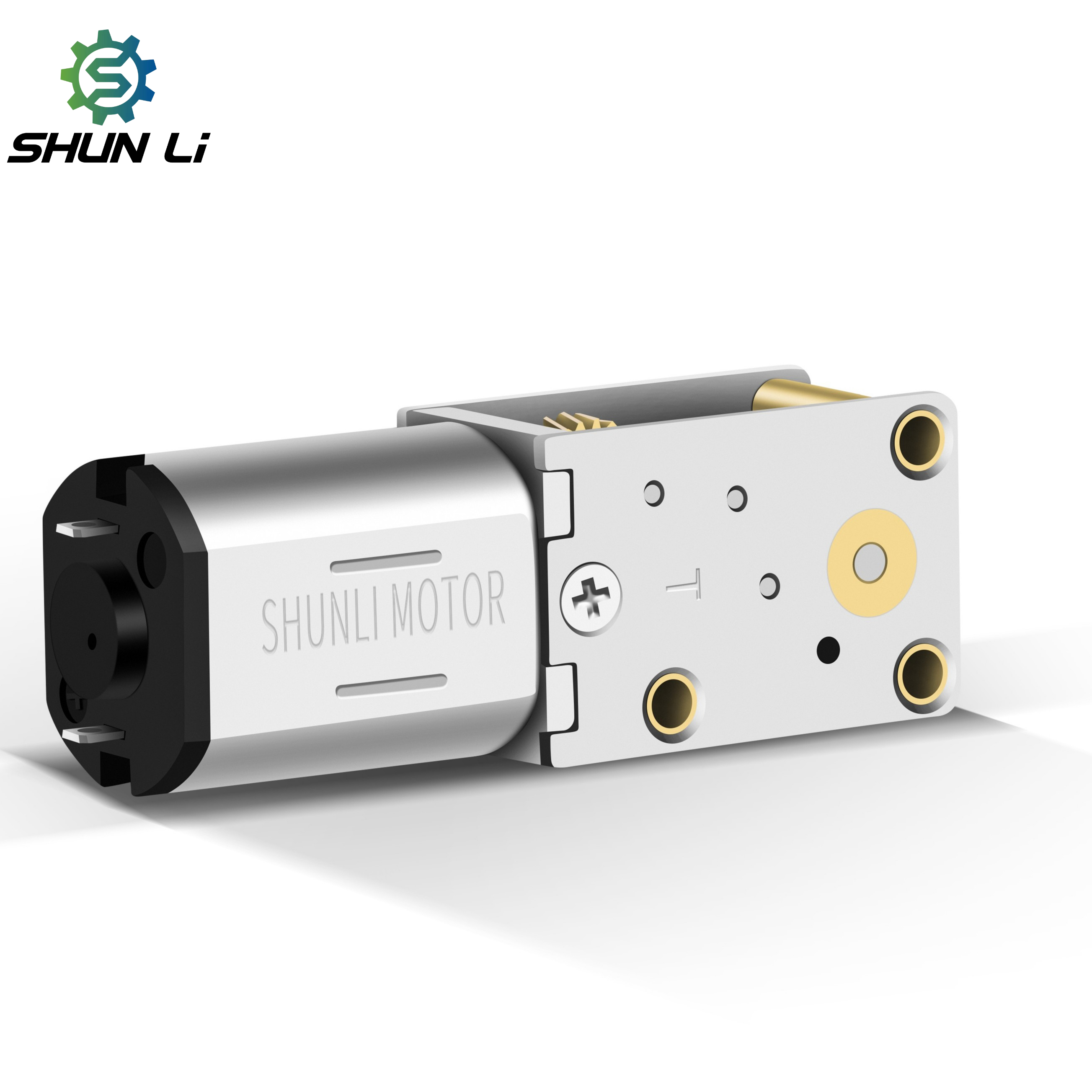

90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
1 / 5
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor

90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor N20 Geared Motor with Worm Gearbox 6v 12v Worm Geared Motor

Send Inquiry

Product Description

Micro DC Gear Motor Overview

Product Specifications

GM1220EMN20 Motor details
Product Model GM1220EMN20/N30
Gearbox Length 20±0.2mm
Speed 22RPM-145RPM
Voltage 4.5V~12V
Rated Torque 8 mN.m/120 mN.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

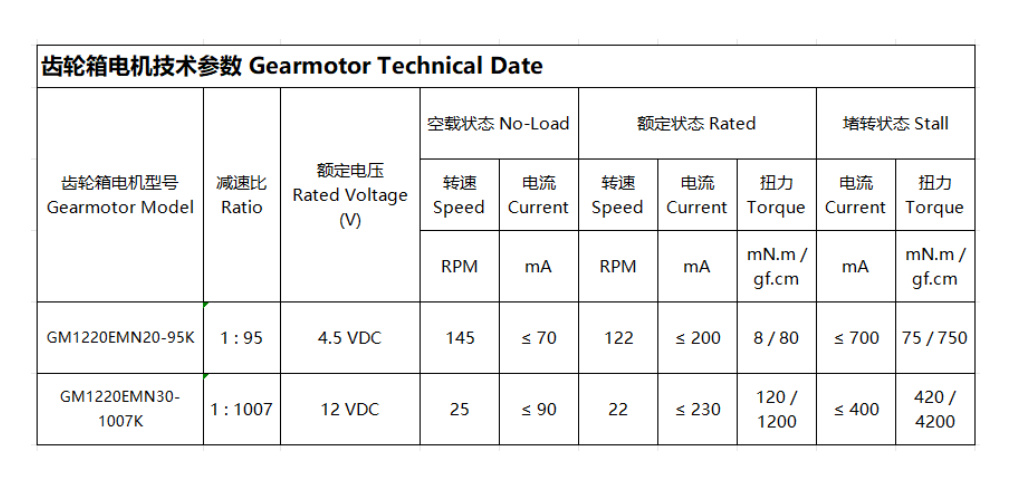

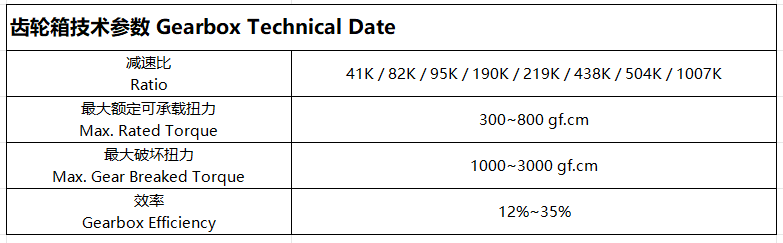

Technical Specifications & Parameters

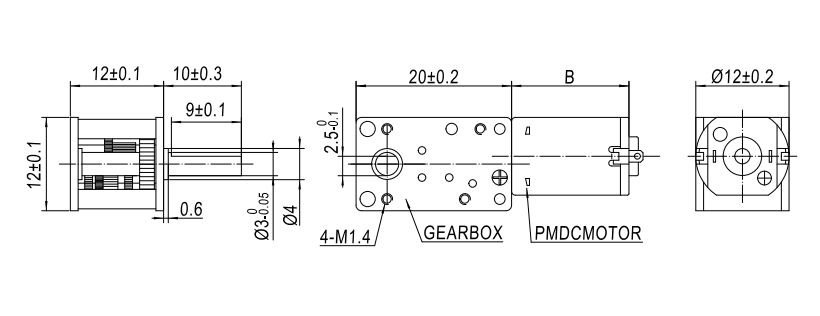

Motor Dimension Drawing
Motor Performance Curves
Application Environments

Product Details Showcase

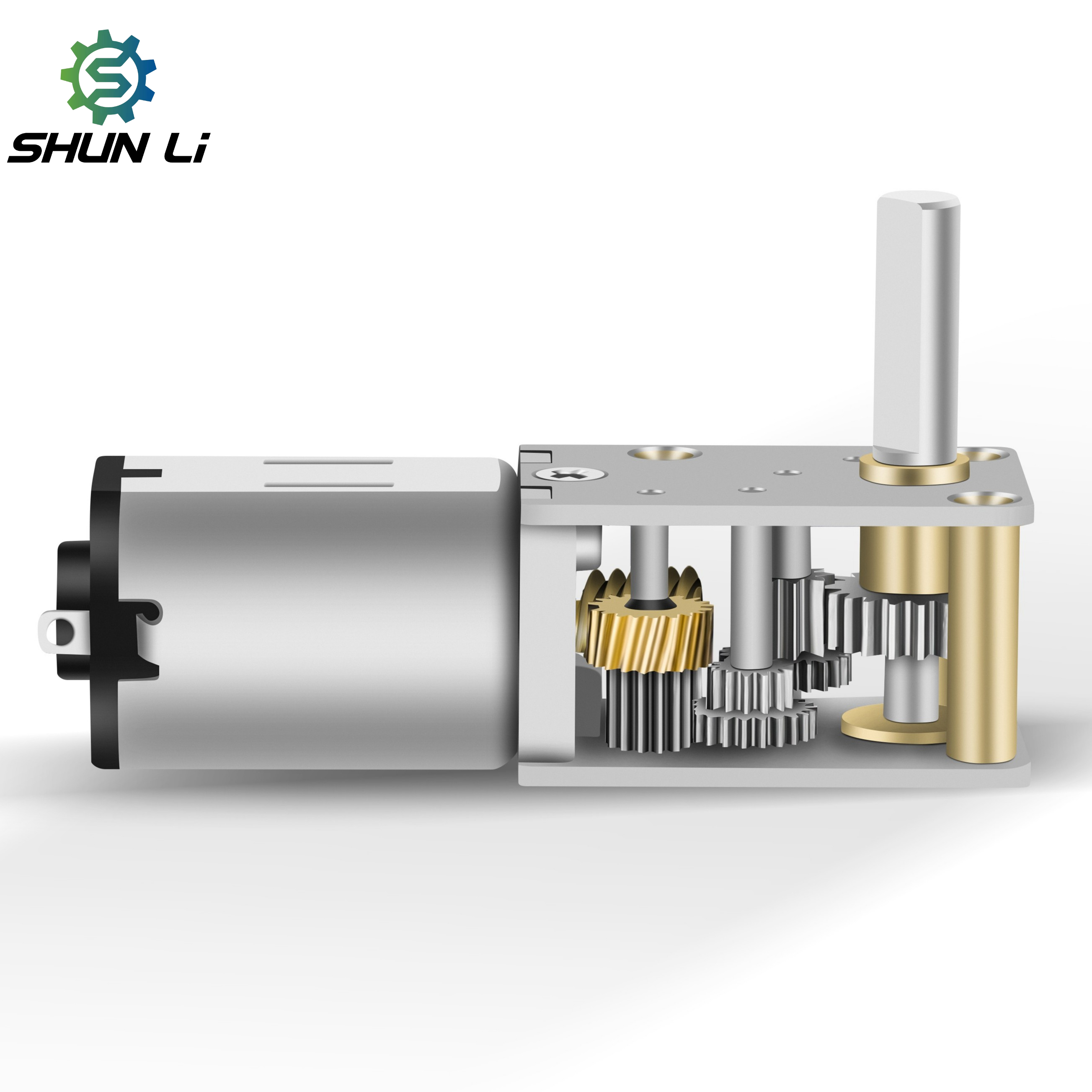

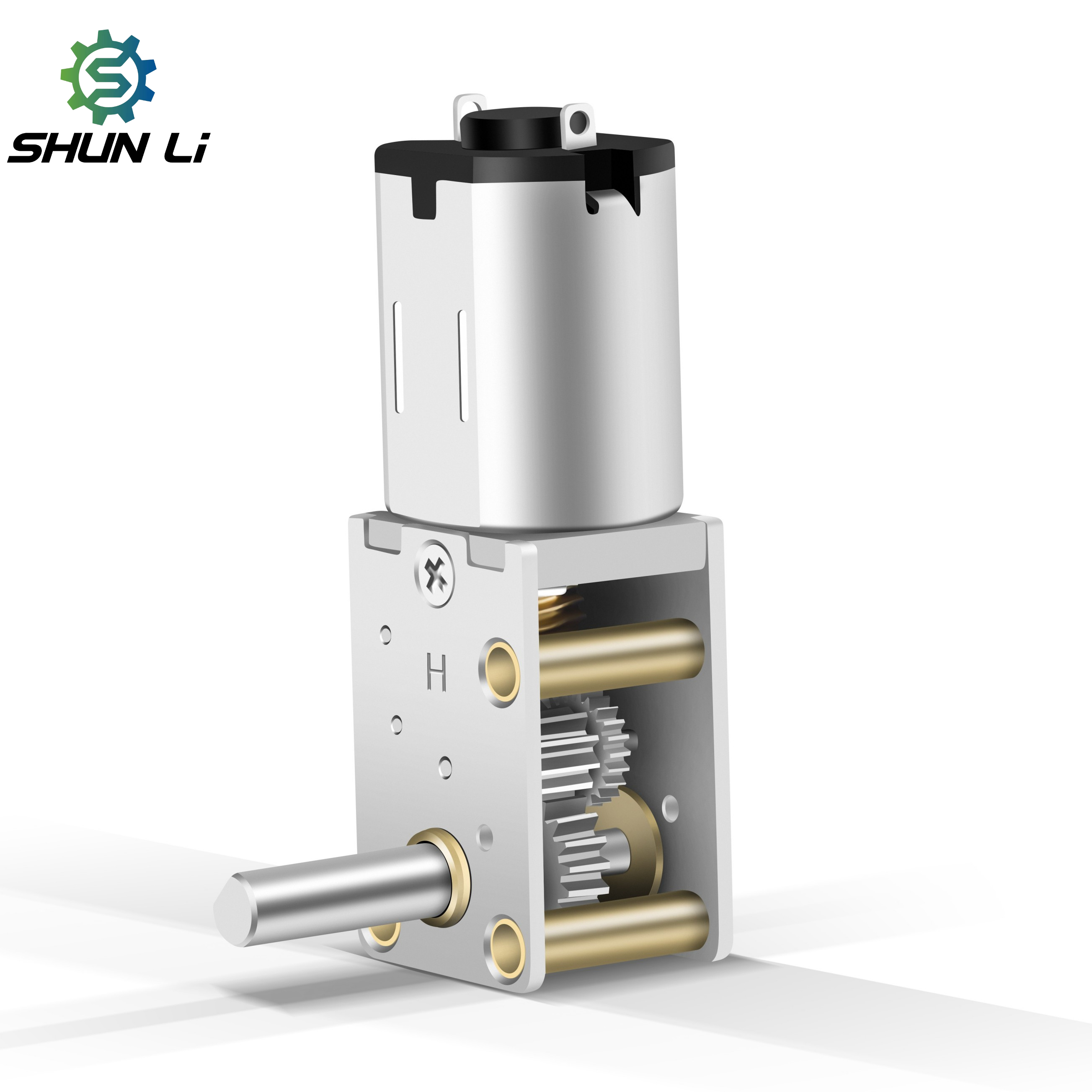

DC Motor view 1
DC Motor view 2
DC Motor view 3
DC Motor view 4
DC Motor view 5
DC Motor view 6

Frequently Asked Questions

1. Q: Are you a trading company or a manufacturer?
A: We are a factory. We specialize in micro DC motors and DC gear motors with more than 14 years of professional experience.
2. Q: What is the payment term for a new customer?
A: We can set up an Online Assurance Order, allowing payments via MasterCard, Visa, PayPal, or T/T.
3. Q: I cannot find a suitable motor on your website, can you customize the motor for me?
A: Yes, we customize motor specifications, transmission dimensions, and parameters according to specific customer requirements.
4. Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, and other key industry standard certifications. We can apply for additional certifications if required.
5. Q: How is your Quality Control managed?
A: We have QA inspectors stationed at every stage of the production line. Complete motors undergo extensive testing using advanced equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
6. Q: What information is needed to get a quick customized solution?
A: Please provide details regarding your required operating voltage, speed (RPM), load torque, space constraints, and application environment, and we will configure the optimal gear system for you.
