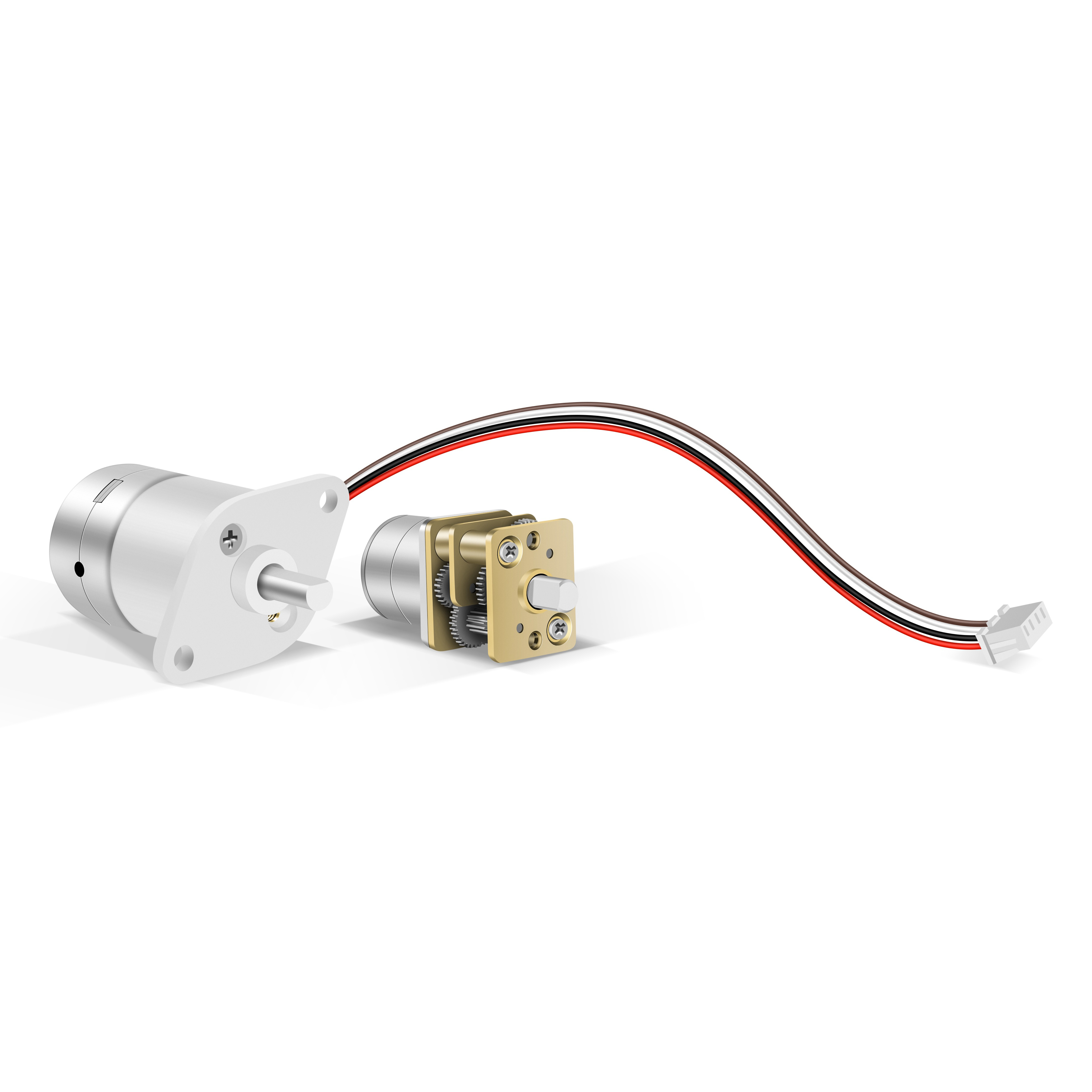

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner

Product Description

Customized 12mm micro dc gear motor - Non captive stepper motor miniature 5v stepper motor of medical equipment

Motor Customized Specification

For tailored specifications and custom motor parameters, please feel free to reach out to us. We build solutions designed specifically for your system requirements.

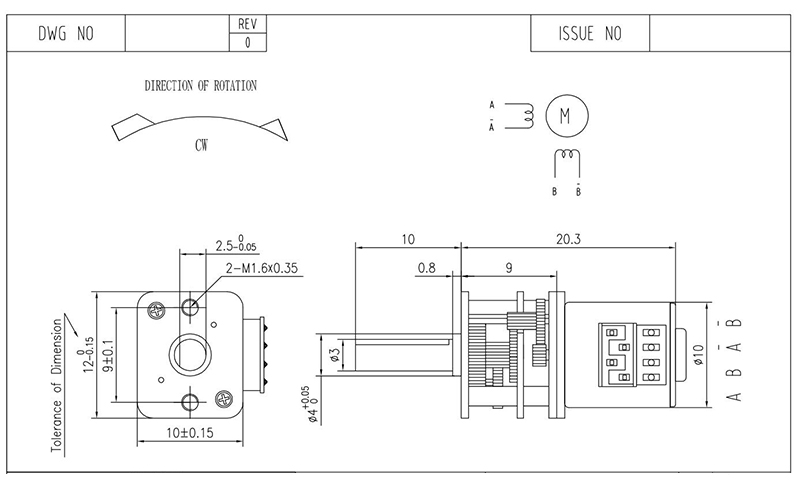

Reference Drawing: GM12-10BY

Reference Datasheet

Gearbox Technical Data

Number of stages	1	2	3	4	5
Ratio	4K / 4.75K	16K / 19K / 22.6K	64K / 74K / 90K / 107K	256K / 304K / 361K / 429K / 509K	1024K / 1216K / 1444K / 1715K / 2036K / 2418K
Gearbox Length “L”(mm)	13.3	16.8	20.3	23.8	27.3
Max. Rated Torque	1.0 Kgf.cm	2.0 Kgf.cm	4.0 Kgf.cm	4.0 Kgf.cm	4.0 Kgf.cm
Max. Gear Breaked Torque	3.5 Kgf.cm	6.5 Kgf.cm	12.5 Kgf.cm	12.5 Kgf.cm	12.5 Kgf.cm
Gearbox Efficiency	80%~90%	70%~80%	60%~70%	50%~60%	40%~50%
Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment

Gearmotor Technical Data

Gearmotor Model	Ratio	Rated Voltage (V)	No-Load		Rated			Stall
			Speed	Current	Speed	Current	Torque	Current	Torque
			RPM	mA	RPM	mA	N.m / Kgf.cm	mA	N.m / Kgf.cm
GMP22M130-64K	1 : 64	6 VDC	138	≤ 160	110	≤ 450	0.095 / 0.95	≤ 1700	0.42 / 4.2
GMP22M180-256K	1 : 256	5 VDC	38	≤ 180	30	≤ 1050	0.32 / 3.2	≤ 3900	1.25 / 12.5

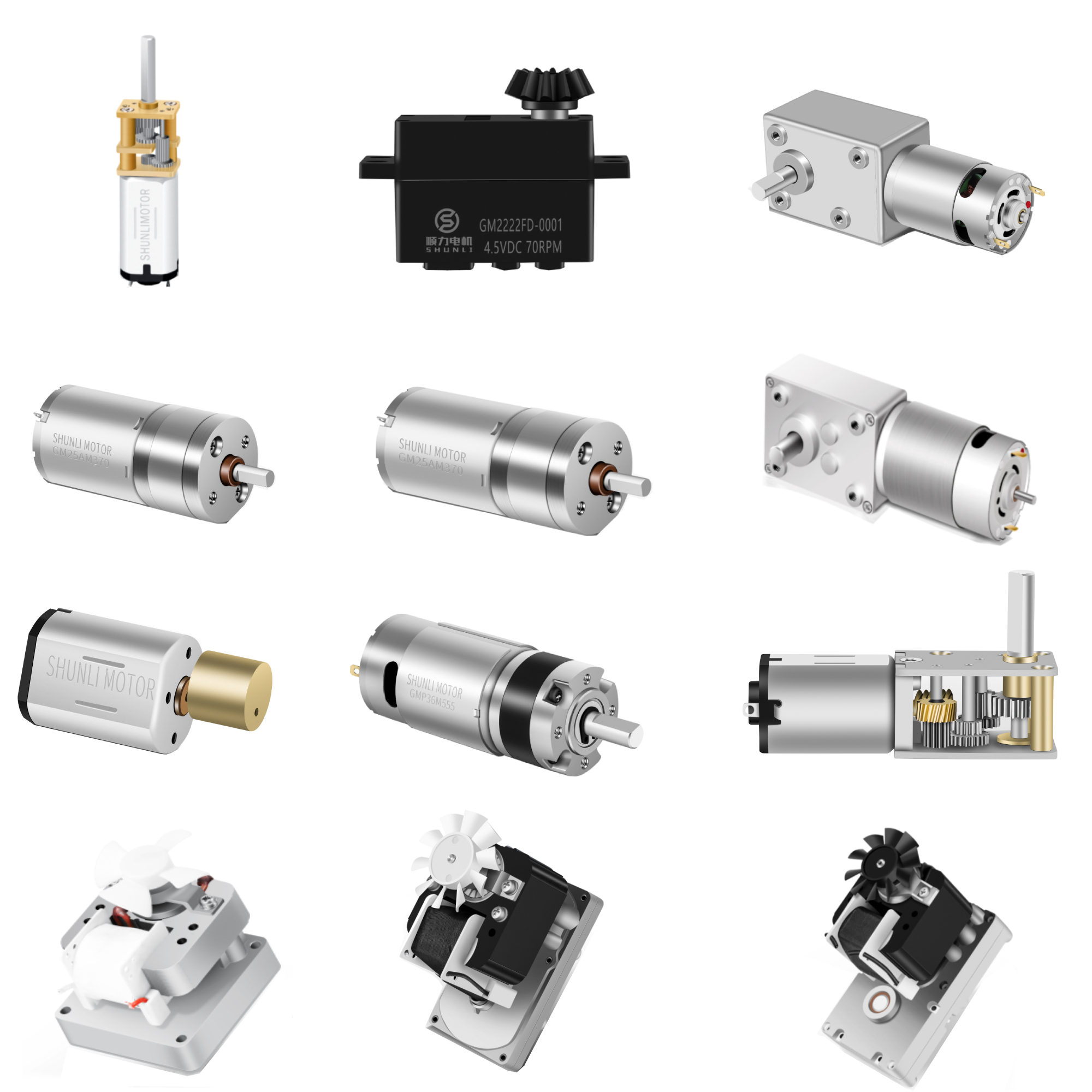

Recommended Motor Solutions

Certifications

Customer Evaluation

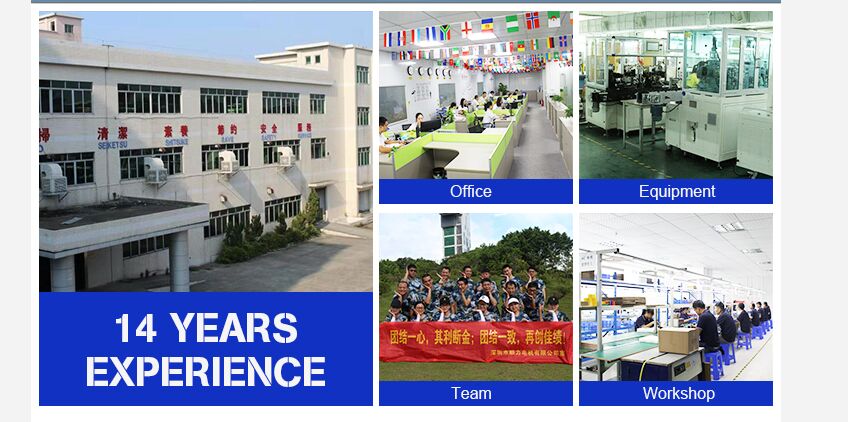

Manufacturing Plant & Capacity

Established in 2005, the production plant is a high-tech enterprise integrating research, development, production, and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shade pole geared motors, and special gearbox motors. The transmission structures are widely applied in automobiles, communications equipment, smart home systems, medical equipment, intelligent security systems, household appliances, Western kitchen equipment, machinery, and electronics. Products are successfully exported to over 50 countries and regions worldwide.

FAQ

1. Q: Are you a trading company or a manufacturer?

A: We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.

2. Q: What is the payment term for a new customer?

A: We can configure a Secure Online Assurance Order for new customers, which supports online payment via Master Card, Visa, etc. Customers can also choose to pay with PayPal or T/T transfer.

3. Q: If I cannot find a suitable motor on your website, can you customize it for me?

A: Yes, we can customize parameters, shaft sizes, and gearbox configurations based on our customers' specific application requirements.

4. Q: Do you have certificates for the motors?

A: Yes, we have CE, FCC, ISO, and other relevant industry certifications. If you need any specific certificates for your market, we can apply for them for you.

5. Q: How is your Quality Control?

A: We have professional inspection staff on every production line process. Once assembly is completed, the motor undergoes full machine tests using specialized instruments, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.

6. Q: What are the main applications of these micro DC gear motors?

A: Our motors are highly suited for precision environments, particularly medical equipment, smart home systems, smart security systems, automotive electronics, and high-end transmission designs.

Contact Us

Looking forward to your feedback!
