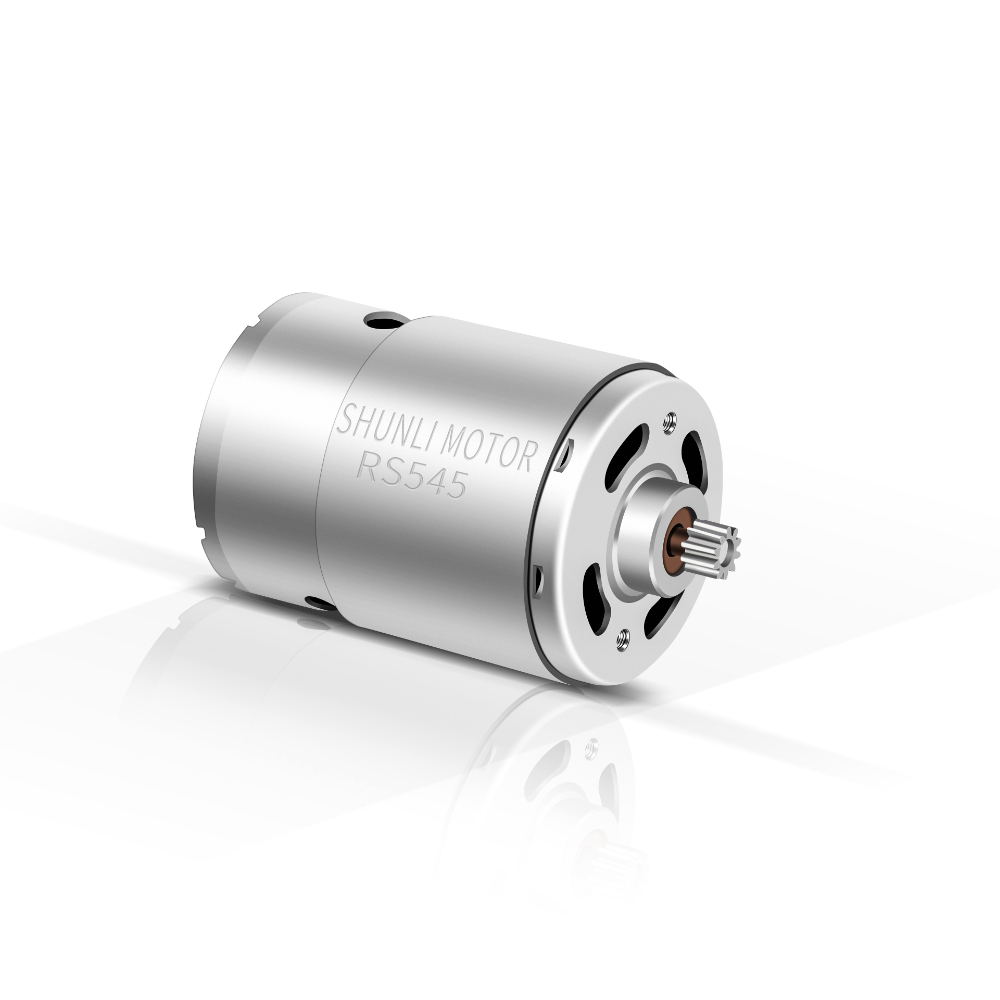

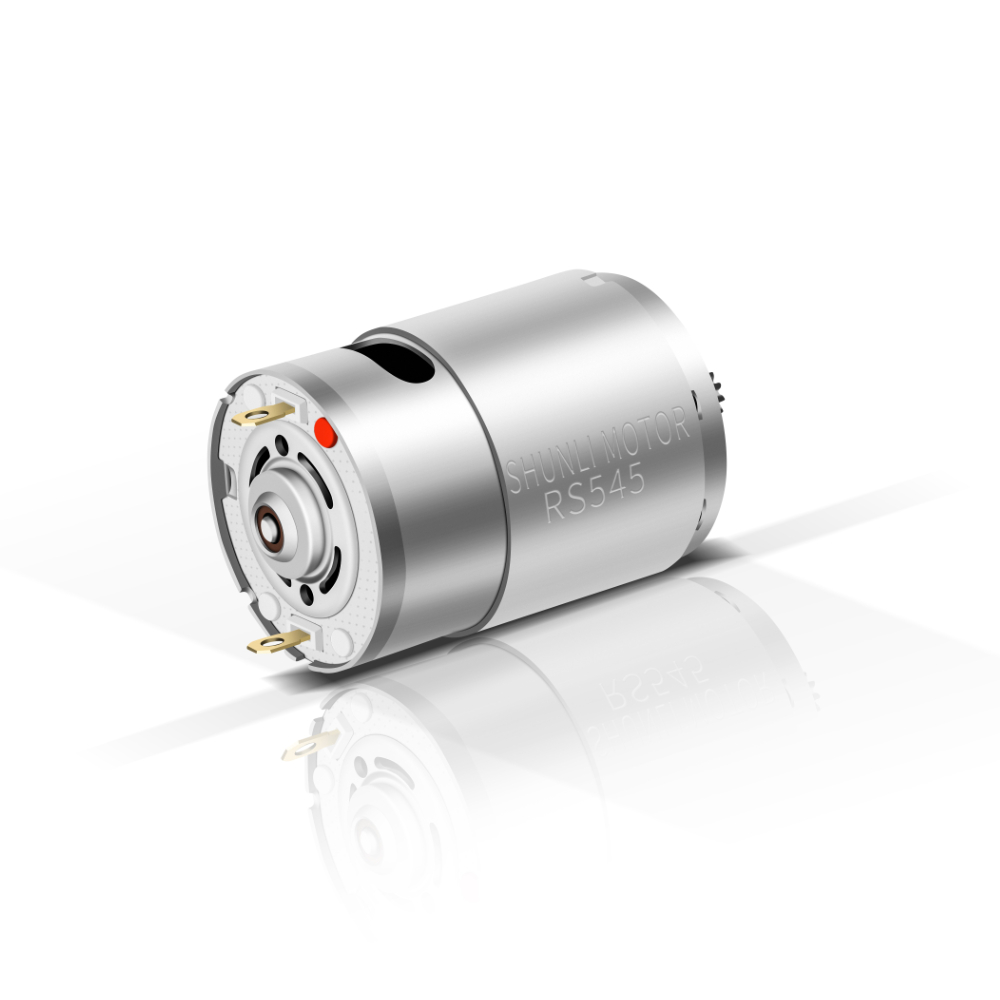

Shunli 6v 12v Dc Gear Motors 24v 15000 Rpm Mini Dc Motor Rs-555 with the Lowest Price

6v 12v 24v 15000 rpm dc motor rs-555 with the lowest price

Product Details

⚙️ Motor Customized Specification, Please contact me.

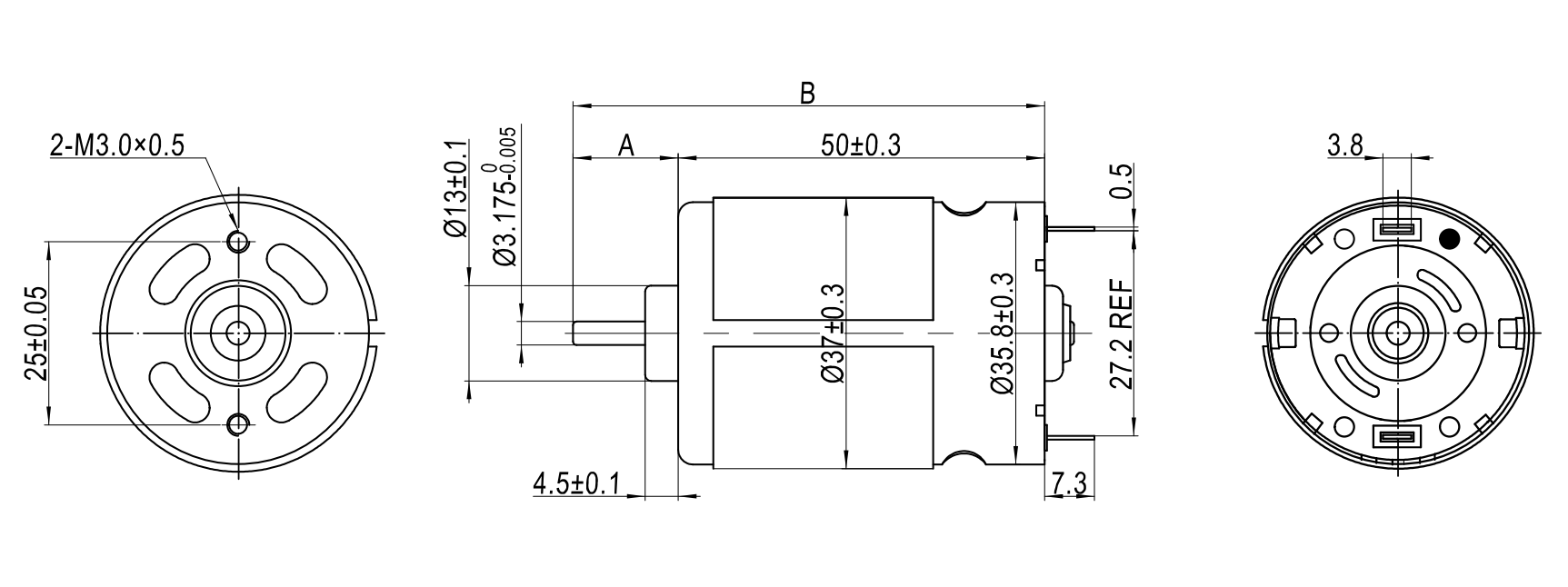

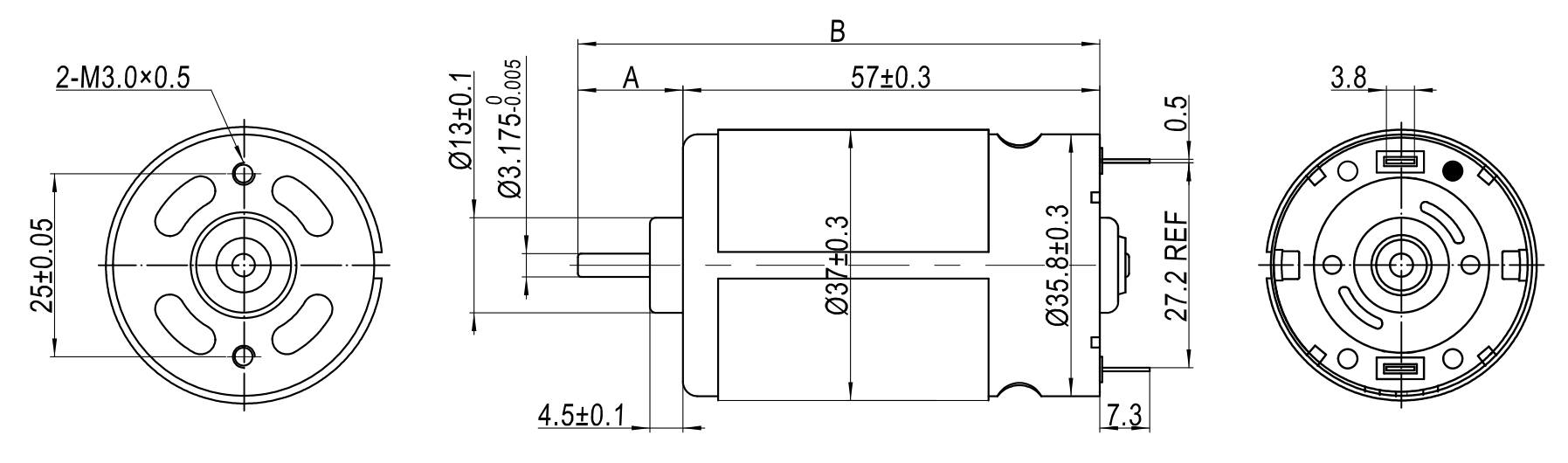

Reference Drawing

RS - 545 A

RS - 555 A

RS - 575 A

📏 The length of shaft can be customized, Please contact me.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

Application

Certifications

Why choose us

1. Company Experience

We are a factory specialize in producing motors more than 14 years. A professional R&D team and mature management will bring you a pleasant business experience.

2. Quality Control

In order to confirm quality, from the raw material received to the final shipment, every step of the way is carefully checked. Quality is the basis of our development.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for new customers?

We can draw up an Online Assurance Order for new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal, TT, and other methods.

If I cannot find a suitable motor on your website, can you customize it?

Yes, we can customize a suitable motor based on our customers' specific requirements.

Do your motors have official certifications?

Yes, we hold CE, FCC, ISO, and other relevant certificates. If you require other specific certifications, we can apply for them on your behalf.

How do you manage your Quality Control process?

We have professional checking staff monitoring every production line process. Finished motors are tested using advanced equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

Can the motor shaft length be customized for our projects?

Yes, the length of the shaft can be fully customized according to your design specifications and application requirements.
