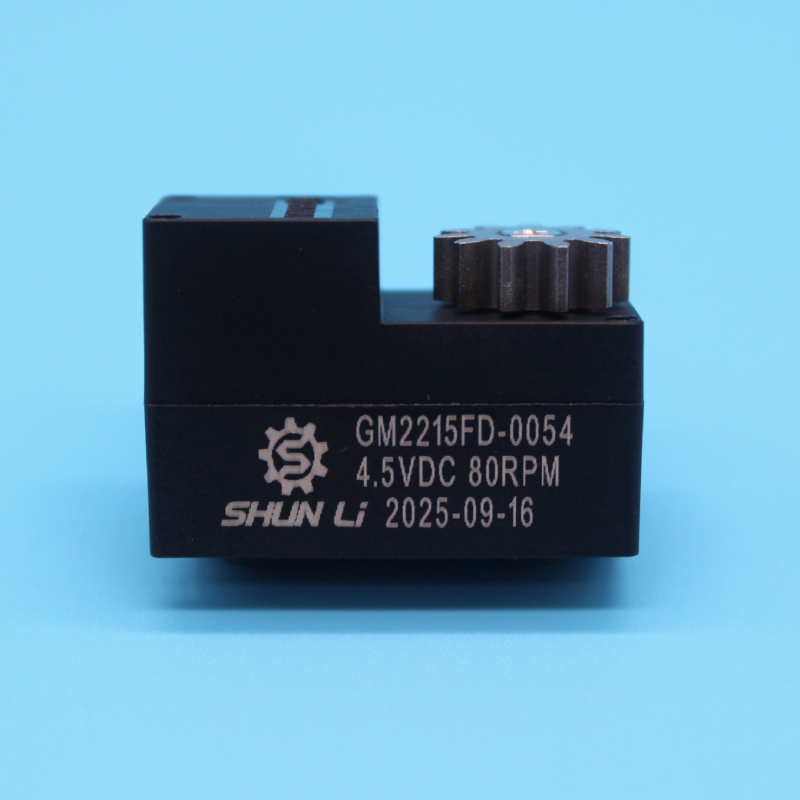

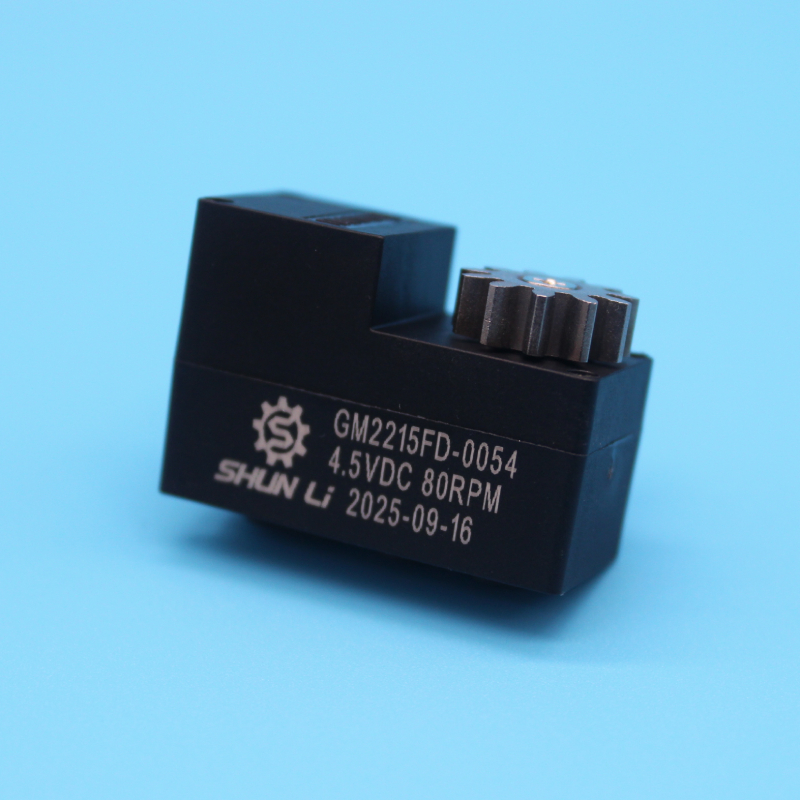

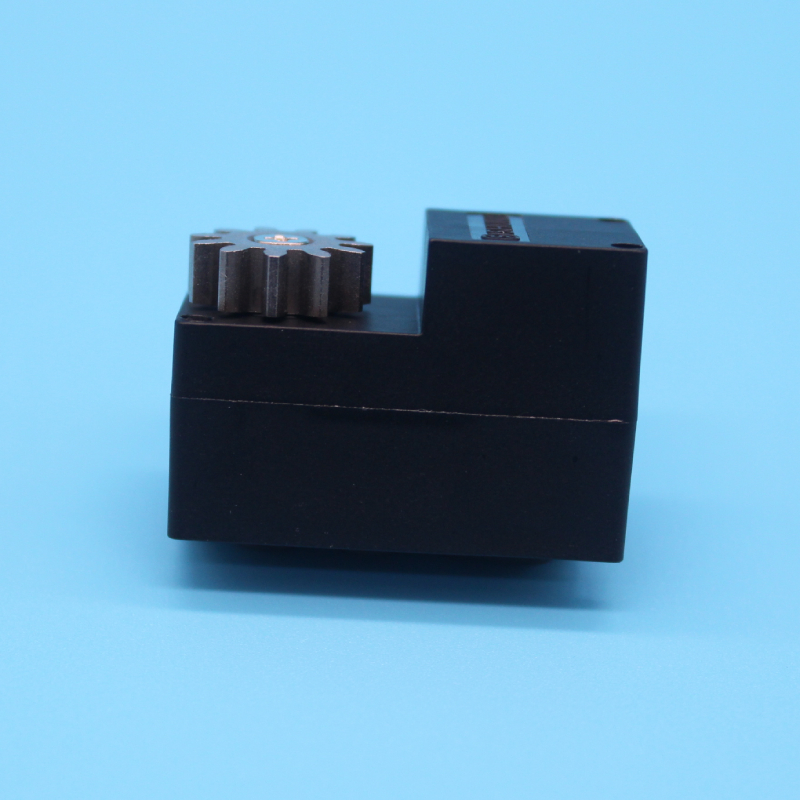

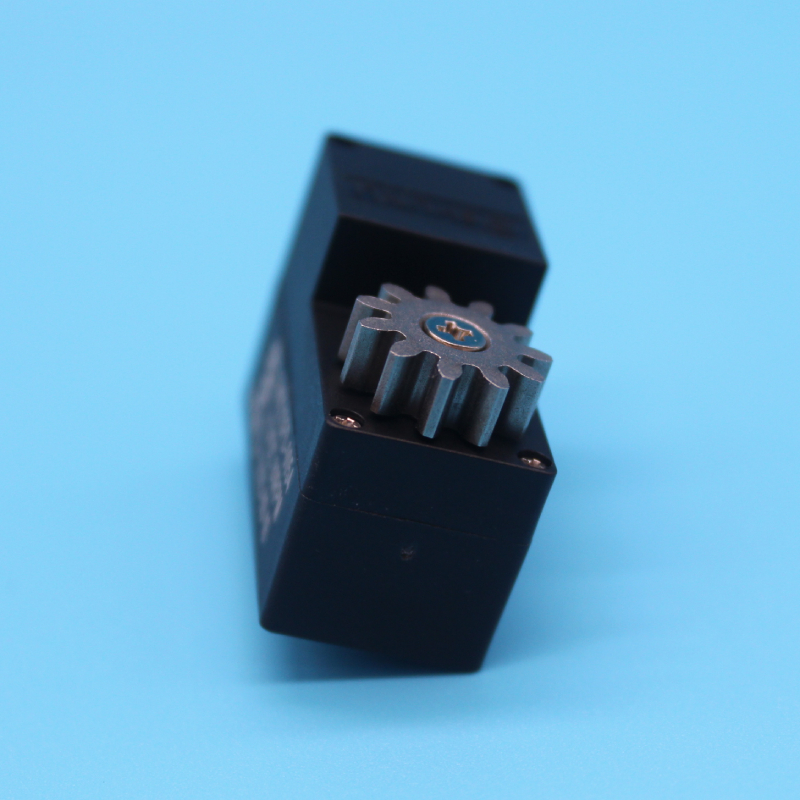

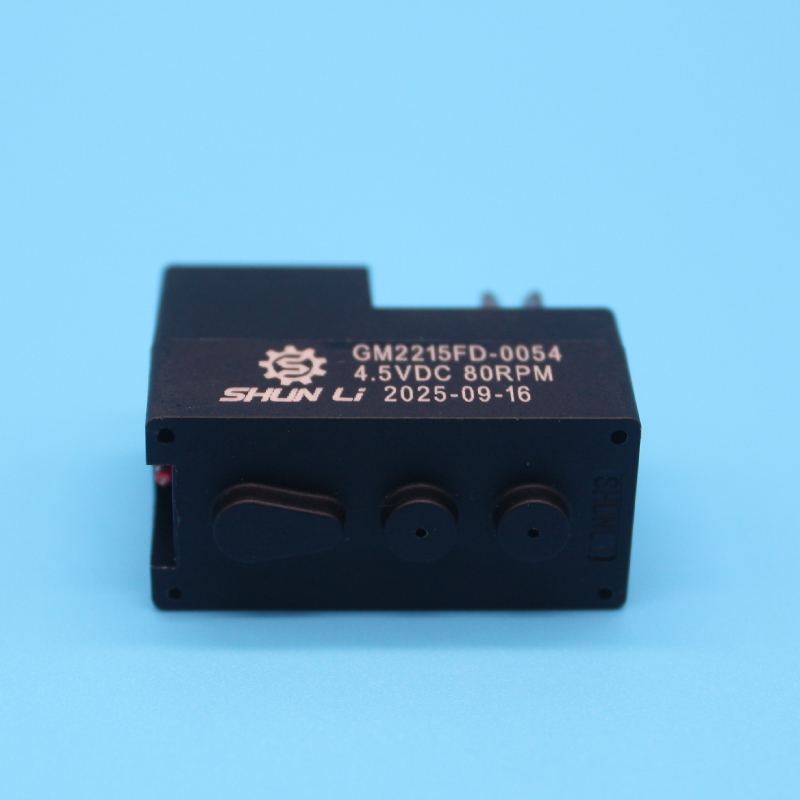

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock

Product Description

Micro Gear Motor Overview
Product Description
2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction Motor

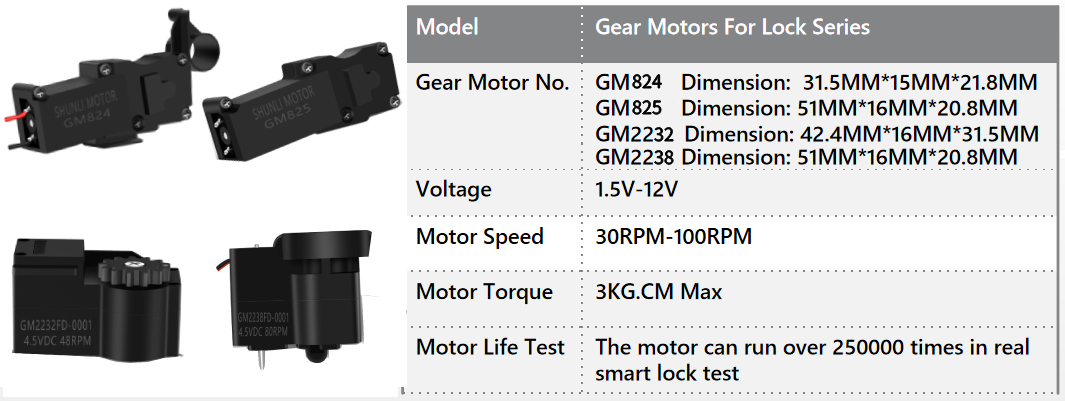

Smart Lock Micro Motor Gearbox

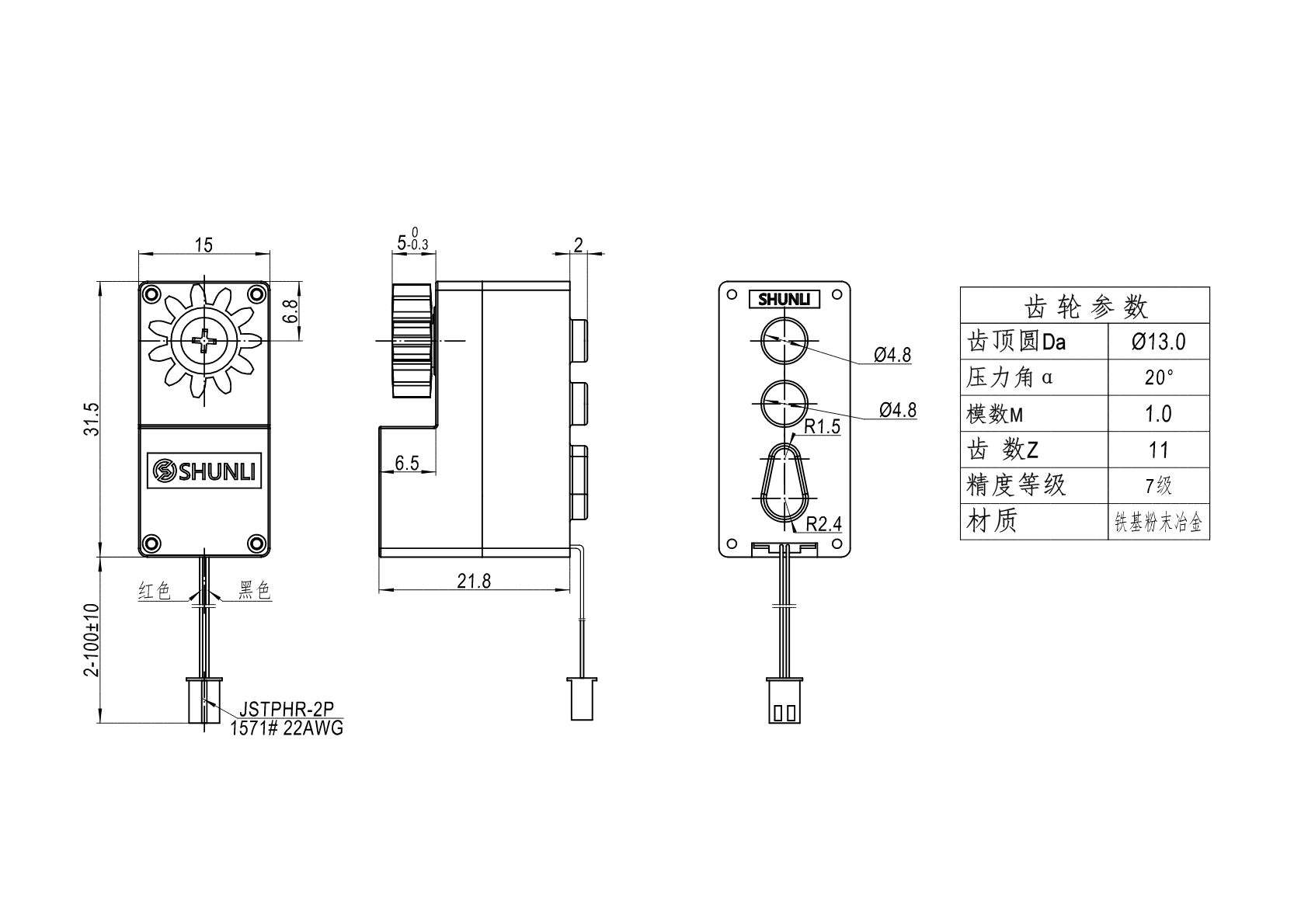

Reference Drawing — GM2215
GM2215 Reference Drawing

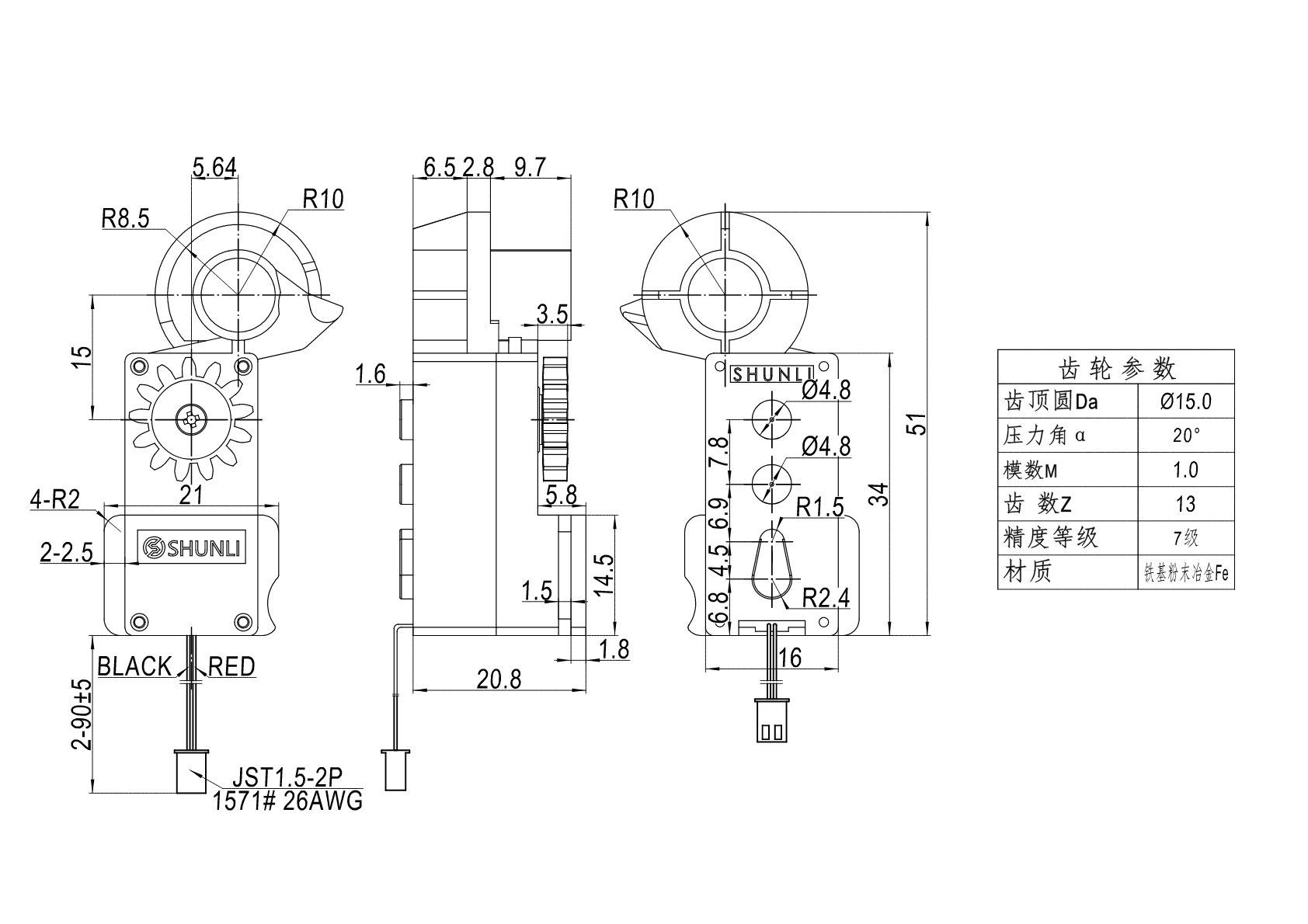

Reference Drawing — GM2219
GM2219 Reference Drawing
Reference Datasheet
Gearbox Technical Data
Ratio 199K / 241K / 265K
Max. Rated Torque 1.5 ~ 2.5 Kgf.cm
Max. Gear Breaked Torque 4 ~ 5 Kgf.cm
Gearbox Efficiency 45% ~ 60%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (mN.m / gf.cm) Current (mA) Torque (N.m / Kgf.cm)
GM2215FMN20-199K 1 : 199 4.5 VDC 52 ≤ 50 40 ≤ 120 18 / 180 ≤ 350 0.18 / 1.8
GM2222FMN20-230K 1 : 230 58 ≤ 78 49 ≤ 135 24 / 240 ≤ 450 0.2 / 2.0
GM2219FMN20-265K 1 : 241 58 ≤ 65 50 ≤ 130 24 / 240 ≤ 680 0.2 / 2.0
GM2219FMN20-265K 1 : 265 62 ≤ 75 51 ≤ 140 35 / 350 ≤ 750 0.22 / 2.2
Product Specifications Showcase
Showcase Motor Series A
Showcase Motor Series B
Quality & Production Process
Testing Equipment 1

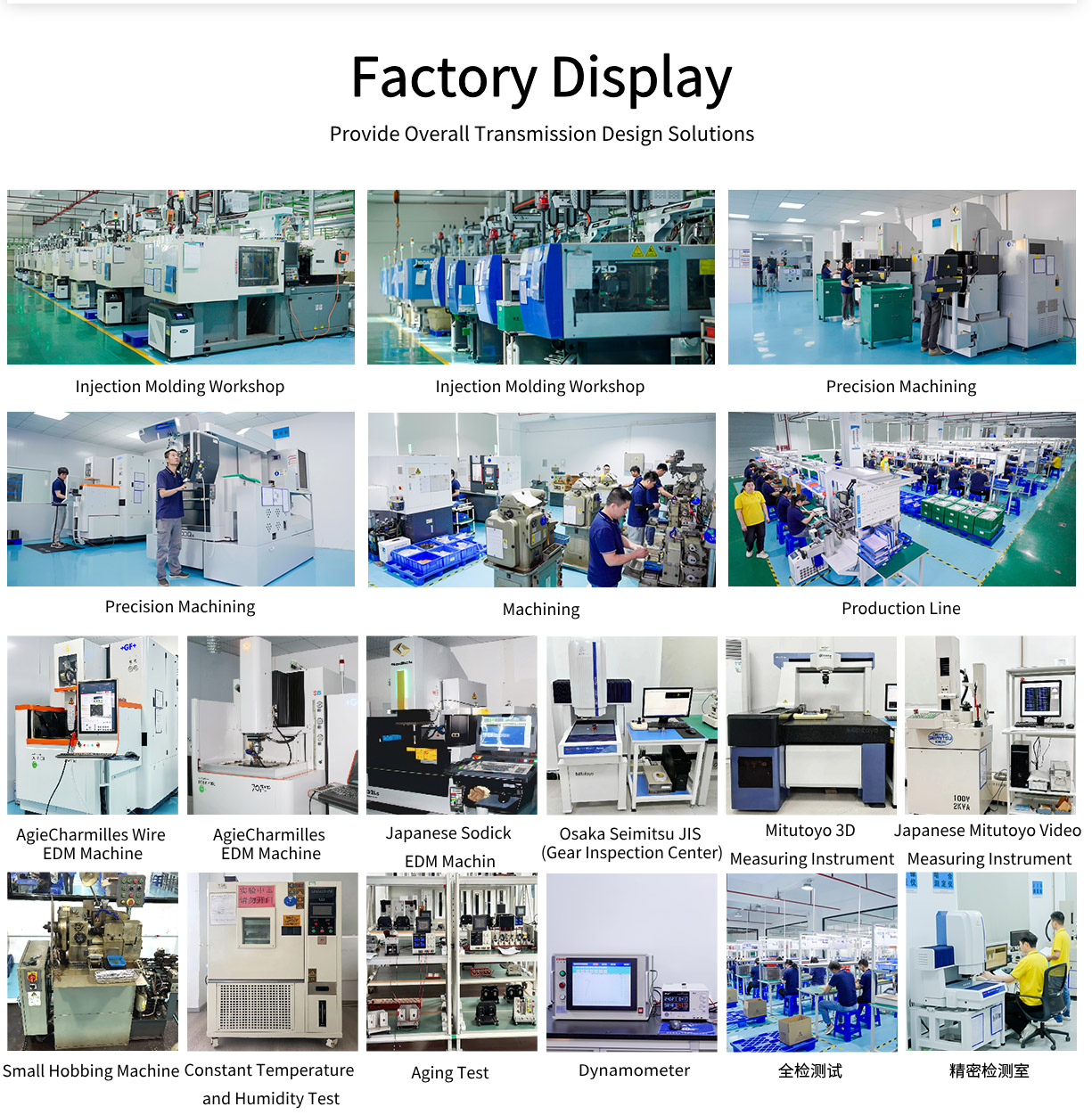

Testing Equipment 2
Testing Equipment 3
Testing Equipment 4
Quality Control Process Overview
Frequently Asked Questions (FAQ)
Q1: Are you a trading company or a manufacturer?
A: We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
A: We can arrange an online Assurance Order, which allows payments via Master Card, Visa, etc. Customers can also choose to pay with PayPal or T/T.
Q3: If I cannot find a suitable motor on your website, can you customize one?
A: Yes, we provide full custom design options to match our customers' specifications and performance requirements.
Q4: Do you hold quality certifications for your motors?
A: Yes, our motors are certified with CE, FCC, ISO, etc. We can apply for other regional or industrial certifications if requested.
Q5: How do you handle quality control?
A: We place professional inspection staff on every production line stage. Finished motors undergo full inspections using advanced apparatuses including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Q6: What parameters should be provided to initiate a custom design?
A: You will need to provide standard parameters such as rated voltage, no-load and load speed, rated load torque, shaft configuration, and overall dimension limitations.
